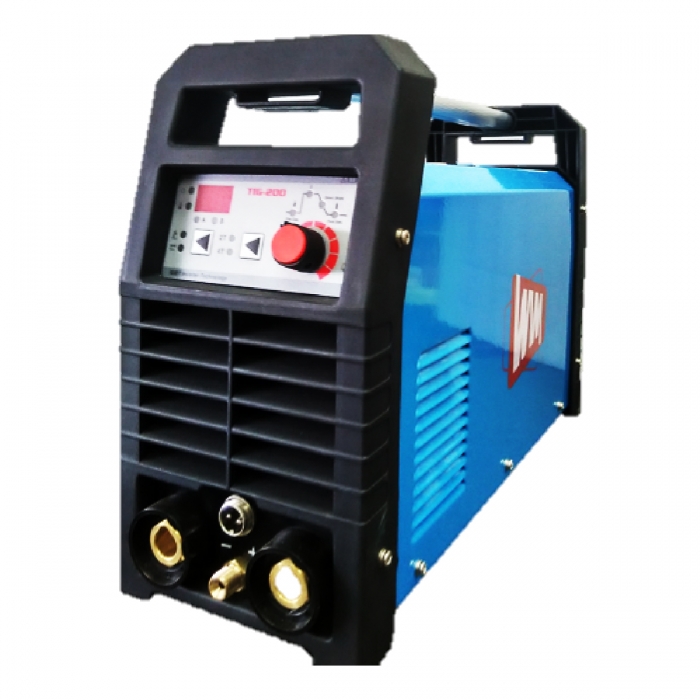

TIG-200 welding machine adopt the latest pulse width modulation (PMW) technology and insulated gate bipolar transistor (IGBT) power module,
which can realiza TIG operation and change work frequency to medium frequency so as to replace the traditional hulking work frenquency transformar with the cabinet medium
frequency transformer. Thus, it is characterized with portable, small size, light weight and low consumtion.

TIG-200 welding machine have MMA operation with hot start and arc force function. Are suitable for all position welding for various plates made of stainless steel, carbon steel, alloy steel, titanium etc, which is also applied to pipe
installment mould mend, petrochemical, architecture decoration car repair bycle, handicaft and common manufacture.

Applications :
Light Industrial
Precision Metal Fabrication
Maintenance and Repair
Light Manufacturing
Tube and Pipe

Technical Data :-
Power source : 1 HP 220-230V AC 50~60Hz
Rated input current : 29A (TIG) 32A (MMA)
Rated input power : 4.6 KW(TIG) 5.3KW(MMA)
Welding current adjustment : 5-200 A
Max no-load voltage : 58 V
Duty cycle : (TIG) 200A 60% / 155A 100%
Duty cycle : (MMA) 160A 60% / 124A 100%

Power factor : 0.8
Efficiency : >80%
Protection class : IP21S
Weight : 60.5kg
Dimension : 460x140x280 mm
