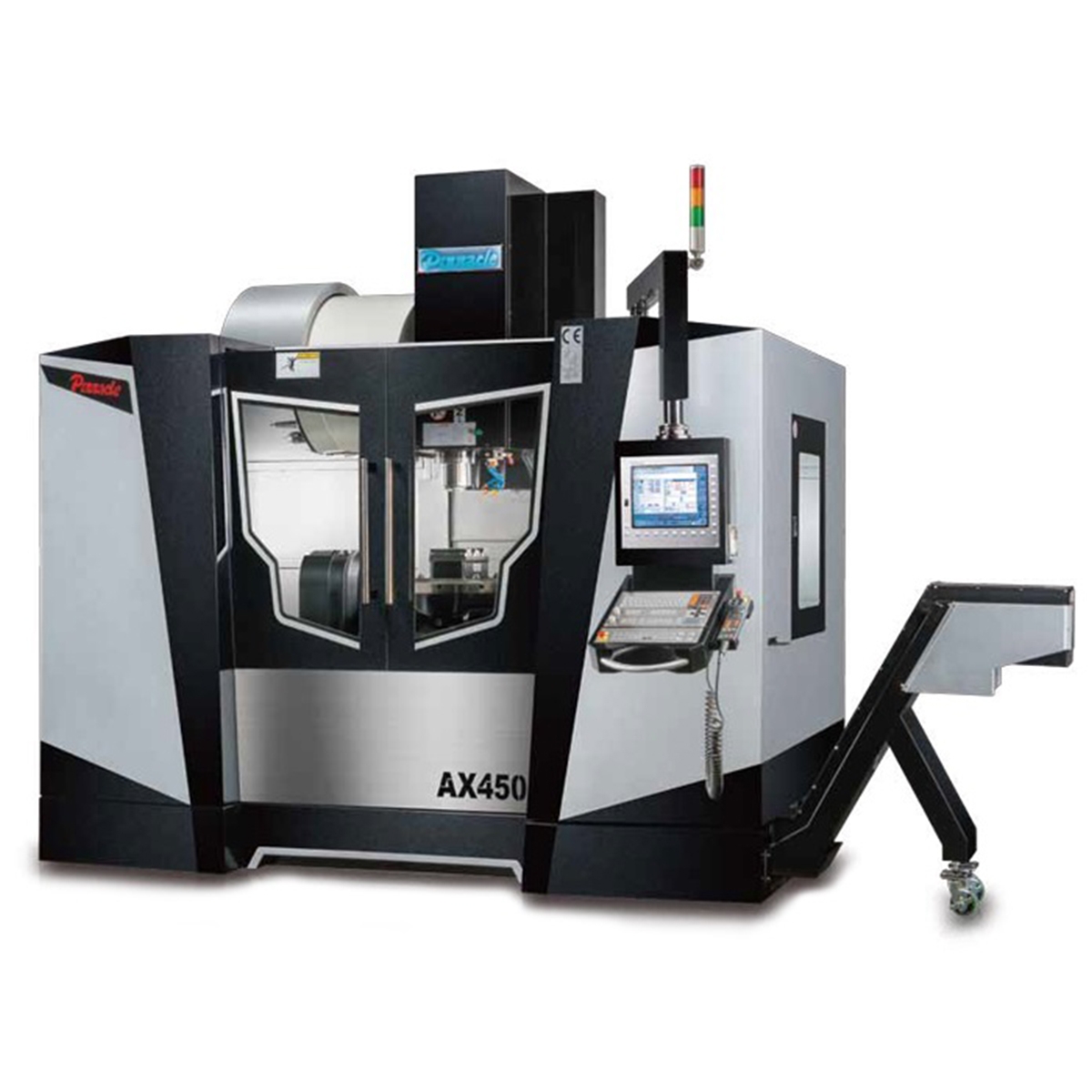

PINNACLE - 5 AXIS MACHINING CENTER AX450
RA Machinery Sdn BhdType: Sale
The 5-axis synchronized machining saves machining time reduces repetitive workpiece setup and error,while dramatically increasing machining and accuracy.
Description
5 - AXIS MACHINING CENTER
The major structure parts are manufactured from high quality Meehanite cast iron, tempered for stress relief. The spindle head elevation employs a pneumatic type balance system to minimize the spindle head vibration during moving.
The 5-axis synchronized machining saves machining time reduces repetitive workpiece setup and error,while dramatically increasing machining and accuracy.
Pinnacle AX320/ AX450 are proven to be super machines for high efficiency and accuracy.
Features
• 760 x 610 x 560 mm Travel
• A Axis Tilt 220° (±110°)
• C Axis Rotary 360°
• Rapid Feedrate 30/30/24
• 9/12 Kw Spindle Motor
• ISO40 Spindle Taper
• X, Y & Z Axis Linear Way
Rigid, Stable, Accurate
RUGGEDLY CONSTRUCTED THROUGHOUT TO PROVTDE LIFETIME ACCURACY YEAR AFTER YEAR
- The major structural parts are manufactured form high quality Meehanite cast iron (GB 300), tempered for stress relief with hardness over 190HB.
- Roller type linear ways on X, Y, Z axis increased stability.
- X, Y, Z axis are transmitted with class C3, Ø40mm ball screws.
TABLE SIZE : Ø450MM
X/Y/Z TRAVEL : 760 X 610 X 560 MM
A AXIS TILT : ±110°
The major structure parts are manufactured from high quality Meehanite cast iron, tempered for stress relief. The spindle head elevation employs a pneumatic type balance system to minimize the spindle head vibration during moving.
The 5-axis synchronized machining saves machining time reduces repetitive workpiece setup and error,while dramatically increasing machining and accuracy.
Pinnacle AX320/ AX450 are proven to be super machines for high efficiency and accuracy.
Features
• 760 x 610 x 560 mm Travel
• A Axis Tilt 220° (±110°)
• C Axis Rotary 360°
• Rapid Feedrate 30/30/24
• 9/12 Kw Spindle Motor
• ISO40 Spindle Taper
• X, Y & Z Axis Linear Way
Rigid, Stable, Accurate
RUGGEDLY CONSTRUCTED THROUGHOUT TO PROVTDE LIFETIME ACCURACY YEAR AFTER YEAR
- The major structural parts are manufactured form high quality Meehanite cast iron (GB 300), tempered for stress relief with hardness over 190HB.
- Roller type linear ways on X, Y, Z axis increased stability.
- X, Y, Z axis are transmitted with class C3, Ø40mm ball screws.
TABLE SIZE : Ø450MM
X/Y/Z TRAVEL : 760 X 610 X 560 MM
A AXIS TILT : ±110°
