Highlights

Solutions for complex shaper
-12000 / 18000 r/min high-speed spindle

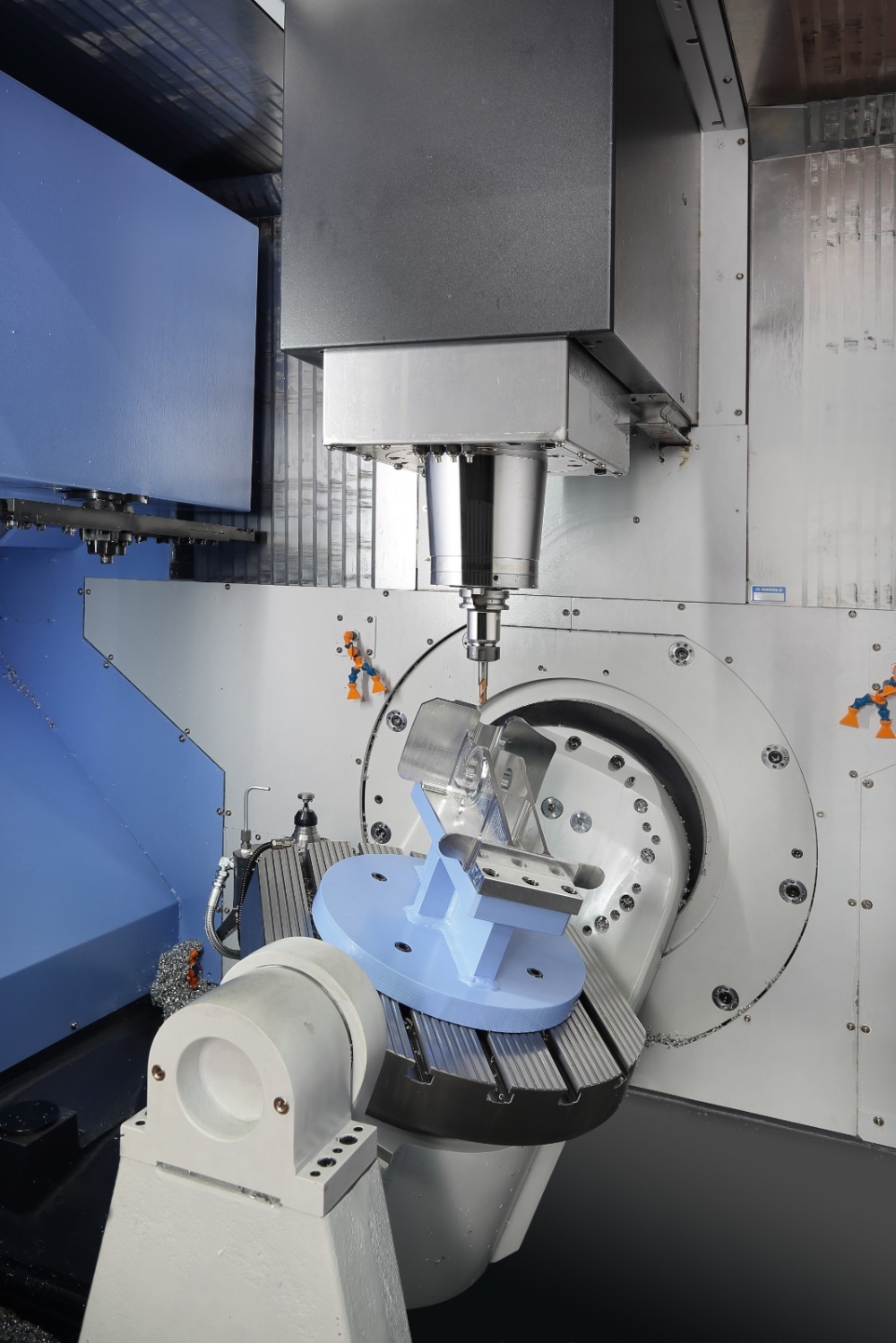

-2 axis tilting table from Ø400 mm to Ø800
-Table turning function : DVF 6500T / DVF 8000T
-High torque spindle of 426 N·m : DVF 8000T/50

High-precision
-Tool length measurement probe is provided as standard
-Integrated thermal compensation systems for spindle and structure
-Spindle cooling provided as standard

User-friendly machine
-The tool magazine is able to hold up to 120 tools and the multi-pallet system facilitates unmanned running
-Compact automation systems are available (AWC,RPS,LPS)


Travels
X axis travel distance - 650mm
Y axis travel distance - 520mm
Z axis travel distance - 480mm

Feed rates
X axis rapid traverse - 42m/min
Y axis rapid traverse - 42m/min
Z axis rapid traverse - 42m/min
C axis rapid traverse - 25r/min
B axis rapid traverse - 25r/min

Main spindle
Max.Spindle speed - 15000 rpm
Max.Spindle power - 18.5 / 11
Max.spindle torque - 118 {156}N·m
Tool taper - ISO#40

Table
Rotary table diameter - 630mm
Maximum workpiece weight - 400kg

Tool storage capacity
No.of tool station - 30 {40,60,120} ea

Dimensions
Length - 2795mm
Height - 2867mm
Width - 2347mm
Weight - 8000kg
