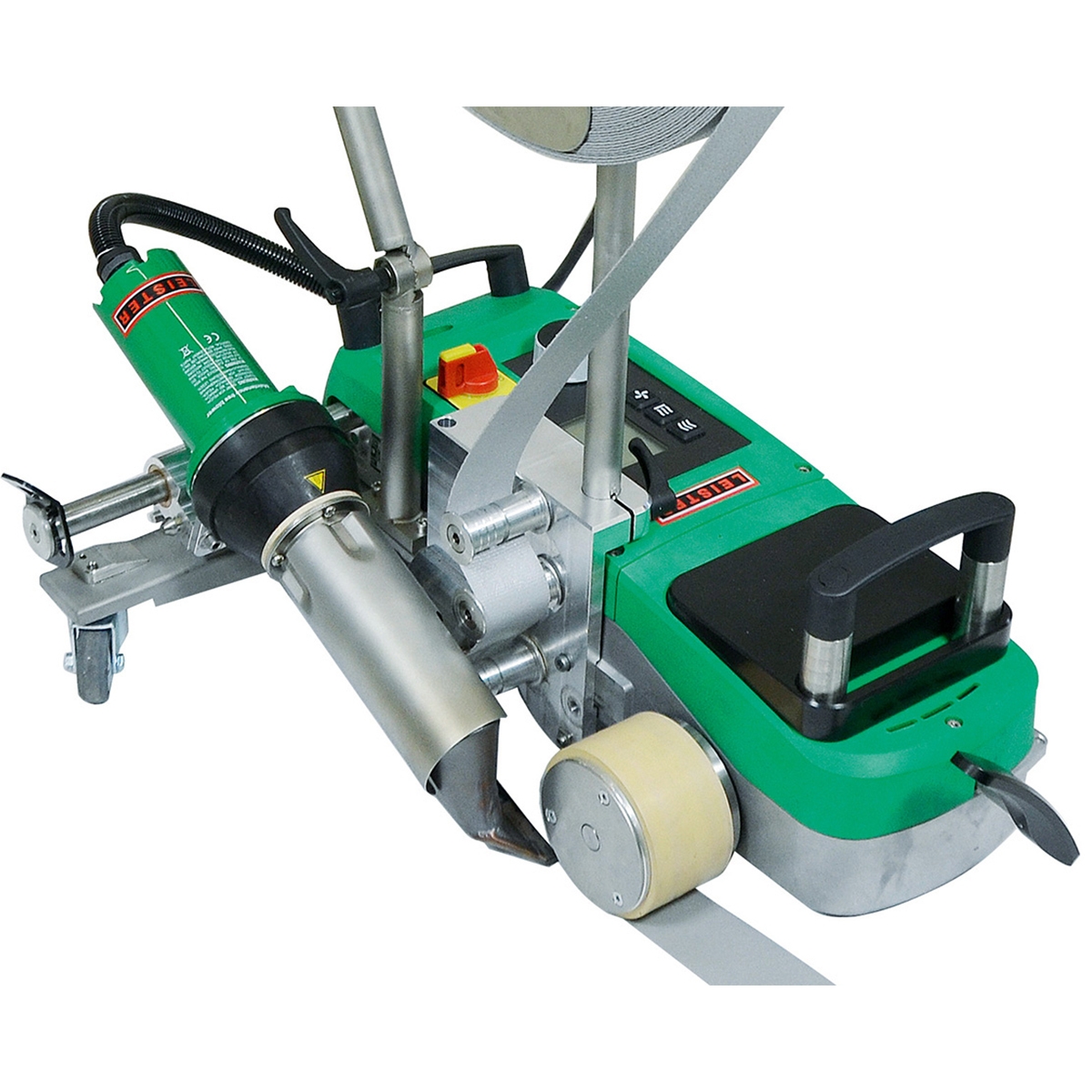

LEISTER VARIANT T1 TAPE

VARIANT T1 TAPE

SIL Technology Sdn Bhd
Type: Sale
Used for welding reinforcement and anti-vandalism tapes in vehicle tarpaulin production.

Inquiry / Quote

To: SIL Technology Sdn Bhd

Description

Used for welding reinforcement and anti-vandalism tapes in vehicle tarpaulin production. Thanks to the "e-Drive" operating concept, setting the relevant welding parameters couldn't be easier. The tape holder and the newly developed guide rollers guide the tape under the pressure roller, keeping it taut right up to the final centimeter.
  • Fastest, most precise automatic tape welding tool (up to 18 m/min)
  • "e-Drive" operating unit
  • Easy to use
  • Taut tape guidance
  • Kits for converting VARIANT T1 Overlap to 25 or 50 mm TAPE
VARIANT T1 BAND 25 mm - 230 V / 3680 W / EU-plug++

Article No. *148.963*

Attribute Unit Value
Voltage V~ 230
Power W 3680
Weld seam width mm 25
Temperature °C 100 -620
Air flow range % 50 – 100
Speed m/min 1.5 – 18
Size (L × B × H) mm 700 × 415 × 85
Weight kg 28
Conformity mark   CE Certification
Approval mark   Sicherheitszeichen-S-+
Protection class I   Protection Class I
