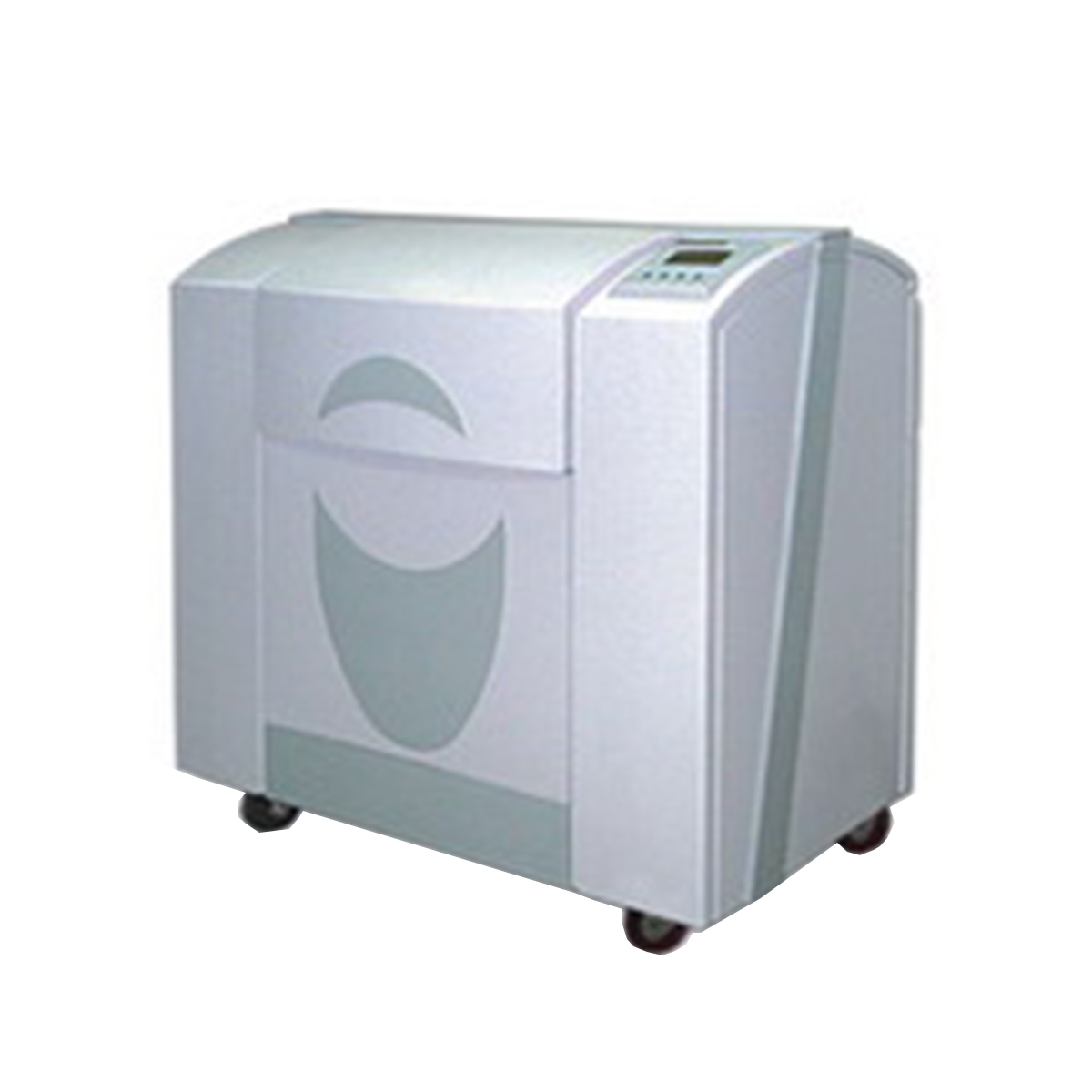

SLEC 5008 Laser Photoplotters
ServSolution Technology Sdn BhdType: Sale
SLEC-5008 Laser Plotter is the high-end 8 beams laser plotting product, which is working at 4000dpi resolution
Description
SLEC-5008 Laser Plotter is the high-end 8 beams laser plotting product, which is working at 4000dpi resolution. This model has the features of wide exposure size, high efficiency and high precision. It is suitable for the output of the film of high precision double sides, high-density multilayer PCB and LCD.
The exposure size of SLEC-5008 is designed as 20” X 26”, which meets the requirement of PCB patchwork film output. It adopts the modern appearance design and the ABS material laser quick molding technology, which make the products elegant, light and hard. The product also adopts the microcomputer non-linear electronic correction technology in the structure precision controlling, which ensure the high precision and give the nonlinear precision compensation. LCD Chinese/English menu display provides operating convenience. Moreover, the friendly man-machine interface also makes operation easier. The intelligent management system realizes the auto film loading, auto vacuum inspection, laser light route adjustment and auto self- diagnosis functions.
TECHNICAL PARAMETERS
The exposure size of SLEC-5008 is designed as 20” X 26”, which meets the requirement of PCB patchwork film output. It adopts the modern appearance design and the ABS material laser quick molding technology, which make the products elegant, light and hard. The product also adopts the microcomputer non-linear electronic correction technology in the structure precision controlling, which ensure the high precision and give the nonlinear precision compensation. LCD Chinese/English menu display provides operating convenience. Moreover, the friendly man-machine interface also makes operation easier. The intelligent management system realizes the auto film loading, auto vacuum inspection, laser light route adjustment and auto self- diagnosis functions.
TECHNICAL PARAMETERS
| Item | Description |
| Model | SLEC-5008 |
| Scanning Structure | External Drum |
| Exposure | 26" x 20" |
| Resolution | 4000dpi |
| Positioning Precision | ± 0.015mm |
| Min. Line Width and Space | 2mil / 2mil |
| Scanning Speed | 7.4 Minutes |
| Beam | 32 Beams laser scanning |
| Light Source | He-Ne red laser light，wave length: 632.8nm |
| Spots Size | 6.35μm |
| Applicable Film | Kodak ERN7; Agfa HTR3; Fuji Film HPR-7S (thickness: 7mi) |
| Film Loading Mode | Semi-auto loading |
| Raster Image Processor | Software RIP |
| Working Environment | AC 220V + 2% ; Temp 20℃±10% ; Humidity 55±10% |
| Input/Output Data Format | RS-274X (Input data format) TIFF/BMP/RID (Output data format) |
| Dimension (mm) | 1240mm×1210mm×890mm |
| Weight | 380kg |
