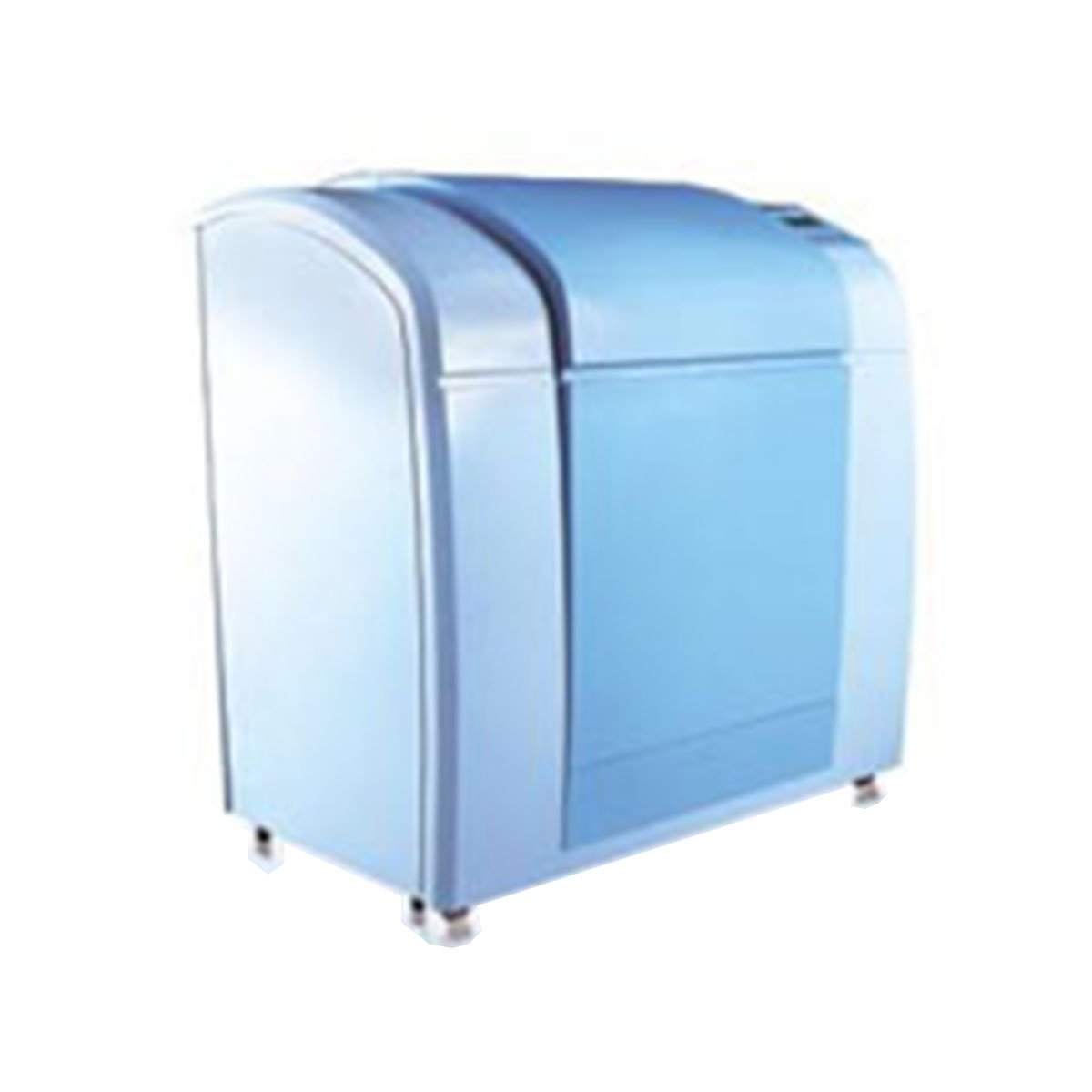

SLEC 1200 Laser Photoplotters
ServSolution Technology Sdn BhdType: Sale
SLEC-1200 Laser Plotter is the middle-end laser plotting product, which is working with 4 beams laser light and 4000dpi resolution.
Description
SLEC-1200 Laser Plotter is the middle-end laser plotting product, which is working with 4 beams laser light and 4000dpi resolution.
The exposure area of SLEC-1200 products is designed as 16” X 20”. It adopts the modern appearance design and the ABS material laser quick molding technology, which make the products elegant, light and hard. The product also adopts the microcomputer non-linear electronic correction technology in the structure precision controlling, which ensure the high precision and give the nonlinear precision compensation. LCD Chinese/English menu display provides operating convenience. Moreover, the friendly man-machine interface also makes operation easier. The intelligent management system realizes the auto film loading, auto vacuum inspection, laser light route adjustment and auto self- diagnosis functions.
To meet the customer’s requirement of improving production efficiency, SLEC-1200 can be upgraded to the 8 beams laser parallel scanning, which makes the scanning time 50% less, so it can improve the production efficiency about 50% more.
SLEC-1200 can be upgraded to SLEC-1288 directly
TECHNICAL PARAMETERS
The exposure area of SLEC-1200 products is designed as 16” X 20”. It adopts the modern appearance design and the ABS material laser quick molding technology, which make the products elegant, light and hard. The product also adopts the microcomputer non-linear electronic correction technology in the structure precision controlling, which ensure the high precision and give the nonlinear precision compensation. LCD Chinese/English menu display provides operating convenience. Moreover, the friendly man-machine interface also makes operation easier. The intelligent management system realizes the auto film loading, auto vacuum inspection, laser light route adjustment and auto self- diagnosis functions.
To meet the customer’s requirement of improving production efficiency, SLEC-1200 can be upgraded to the 8 beams laser parallel scanning, which makes the scanning time 50% less, so it can improve the production efficiency about 50% more.
SLEC-1200 can be upgraded to SLEC-1288 directly
TECHNICAL PARAMETERS
| Item | Description |
| Model | SLEC-1200 |
| Scanning Structure | External Drum |
| Exposure | 16" X 20" (406 X 508mm) |
| Resolution | 8000dpi |
| Positioning Precision | ± 0.015mm |
| Min. Line Width and Space | 2mil / 2mil |
| Scanning Speed | 11.8 Minutes |
| Beam | 8 Beams laser scanning |
| Light Source | He-Ne red laser light，wave length: 632.8nm |
| Spots Size | 3.175μm |
| Applicable Film | Kodak ERN7; Agfa HTR3; Fuji Film HPR-7S (thickness: 7mi) |
| Film Loading Mode | Semi-auto loading |
| Raster Image Processor | Software RIP |
| Working Environment | AC 220V + 2% ; Temp 20℃±10% ; Humidity 55±10% |
| Input/Output Data Format | RS-274X (Input data format) TIFF/BMP/RID (Output data format) |
| Dimension (mm) | 1240mmx830mmx1060mm |
| Weight | 350kg |
