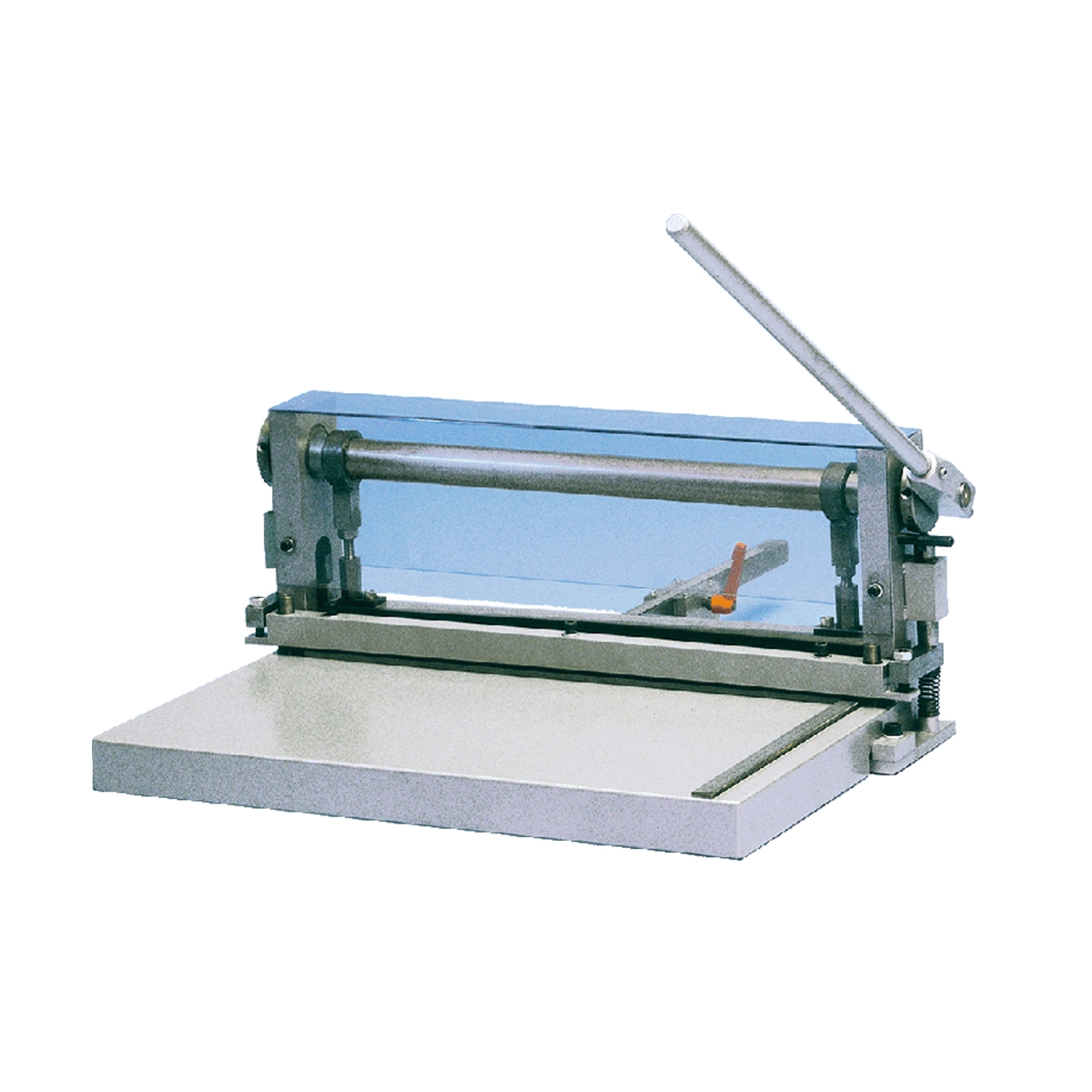

BUNGARD Ne-Cut

Ne-Cut

ServSolution Technology Sdn Bhd
Type: Sale
Ne-Cut was developed for cutting of PCBs (0-3 mm), Aluminium (0-2mm), steel (0-1 mm), plastics (0-5 mm) and even films and artworks.

Inquiry / Quote

To: ServSolution Technology Sdn Bhd

Description

Features :

  • Cutting width max. 530 mm
  • Two knifes made of hardened and ground steel
  • Spring loaded built-in clamping unit in the front
  • Transparent cover hood for user safety and visual control
  • Metric edge scales in the front
  • Fully adjustable back stop with metric scale for batch work (0...300 mm)
  • Smallest cutting size (front) 45 mm
  • Durable full steel construction
  • All important parts angular adjustable
  • Simple exchange of blades
  • Adjustable cutting angle
  • Adjustable clearance


Techn. Data :

Dimensions (LxWxH): 740 x 450 x 290 mm

Cutting width: max. 530 mm

Weight: 66 kg

Angular and dimensional tolerance: 0.1 mm

Smallest cut at the front: 45 mm

Add-ons :
Set of spare blades
