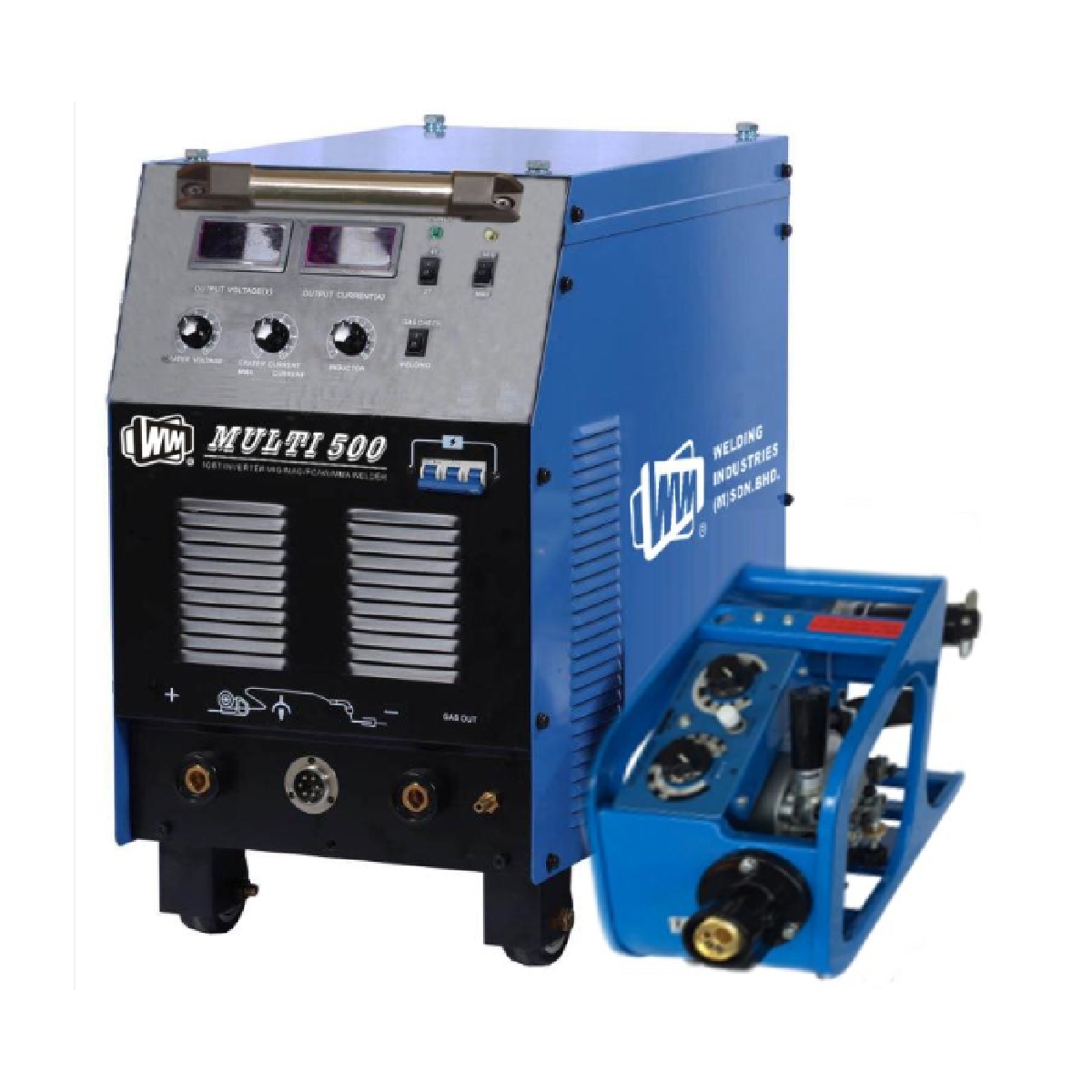

MULTI 500 IGBT

MULTI 500 IGBT

Longlife Weld Sdn Bhd
Type: Sale
High OCV and slow feeding program combines with wire tip sharpening feature to ensure one time successful arc starting.

Inquiry / Quote

To: Longlife Weld Sdn Bhd

Description



Features

High OCV and slow feeding program combines with wire tip sharpening feature to ensure one time successful arc starting.

Preset function of welding voltage and welding current enables it to be user friendly.

Typical Usage : Automative, manufacturing, maintenance, fabrication, auto body.

Worldwide advance IGBT and fast recovery diode module combines with upgraded circuitry to provide longevity and reliability.

Processes : MIG / MAG
Power LED
O.T LED
Current Meter
Voltage Meter
MIG current adjust 80-500A
MMA current adjust 20-360A
Crater adjustable
Gas Check

Inductance adjustable

Speed mode adjustable
No ball end design
Power switched on rear panel

Technical Data :-
Function : MIG (MAG) / MMA
Rated Input Voltage :  380 ~ 415V+ 15%

Phase /frequency : 3Ph/50~60Hz
Rated Input Power : 24.5KVA
Rated Duty Cycle : 100%
Output Amperage Range : 80~500A
Output Voltage Range : 18~39V
Max. OCV : 63V
Net Weight : 43KG
Dimensions : 66x37x62 cm
