Miter Cutting Band Saw - WL-650DSA
Newera Tools & Machinery (M) Sdn BhdType: Sale

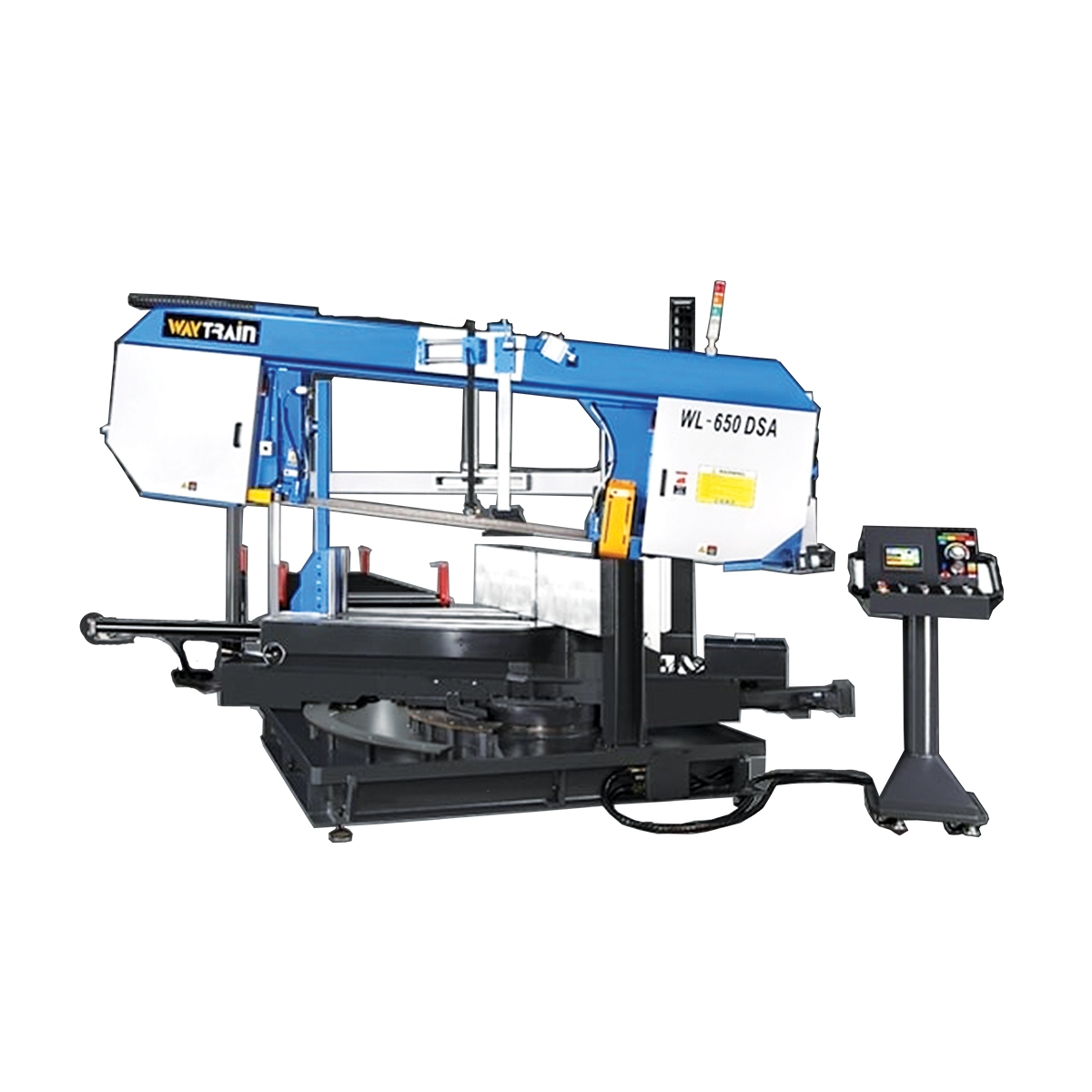

Miter Cutting Band Saw - WL-650DSA
Description
WL-650DSA
Double Column
- Variable saw bow rotation for double miter cutting (L60° R45°).
- Hydraulic blade carblde guide pads.
- Hydraulic blade tension control device.
- Power drive swarf brush and conveyer.
- Blade speed adjusts by motor Inverter.
- Blade guide arm automatically slides to vise clamping position.
- Saw bow auto-rotate by selecting cutting mode on touch screen.
- Drive head’s angle and positioning by hydraulic motor and brake.
- Blade tilt 6.5°design for cutting wide work piece or H beam.
- Notifications of malfunction diagnosing on touch screen.
- Top Clamping is Optional
Product Specifications
| Capacity(HxW) | 90° | ● 650 mm | ██ 650 x 1100 mm | |
| L45° | ● 650 mm | ██ 650 x 650 mm | ||
| L60° | ● 400 mm | ██ 400 x 650 mm | ||
| R45° | ● 650 mm | ██ 650 x 650 mm | ||
| Blade Size | 54 x 1.6 x 8730 mm | |||
| Blade Speed | 30~110 mpm | |||
| Blade Motor | 10 HP | |||
| Hydraulic Motor | 3 HP | |||
| Coolant Motor | 1/4 HP | |||
| Table Height | 830mm | |||
| Packing Size | 4550 x 2270 x 2560 mm(WL-650DSA) / 3120 x 1430 x 1140(PR-1100) | |||
| N.W. / G.W. | 5200kg | |||
