LW 320 E AL Nautic
Chroma Gas Sdn BhdType: Sale

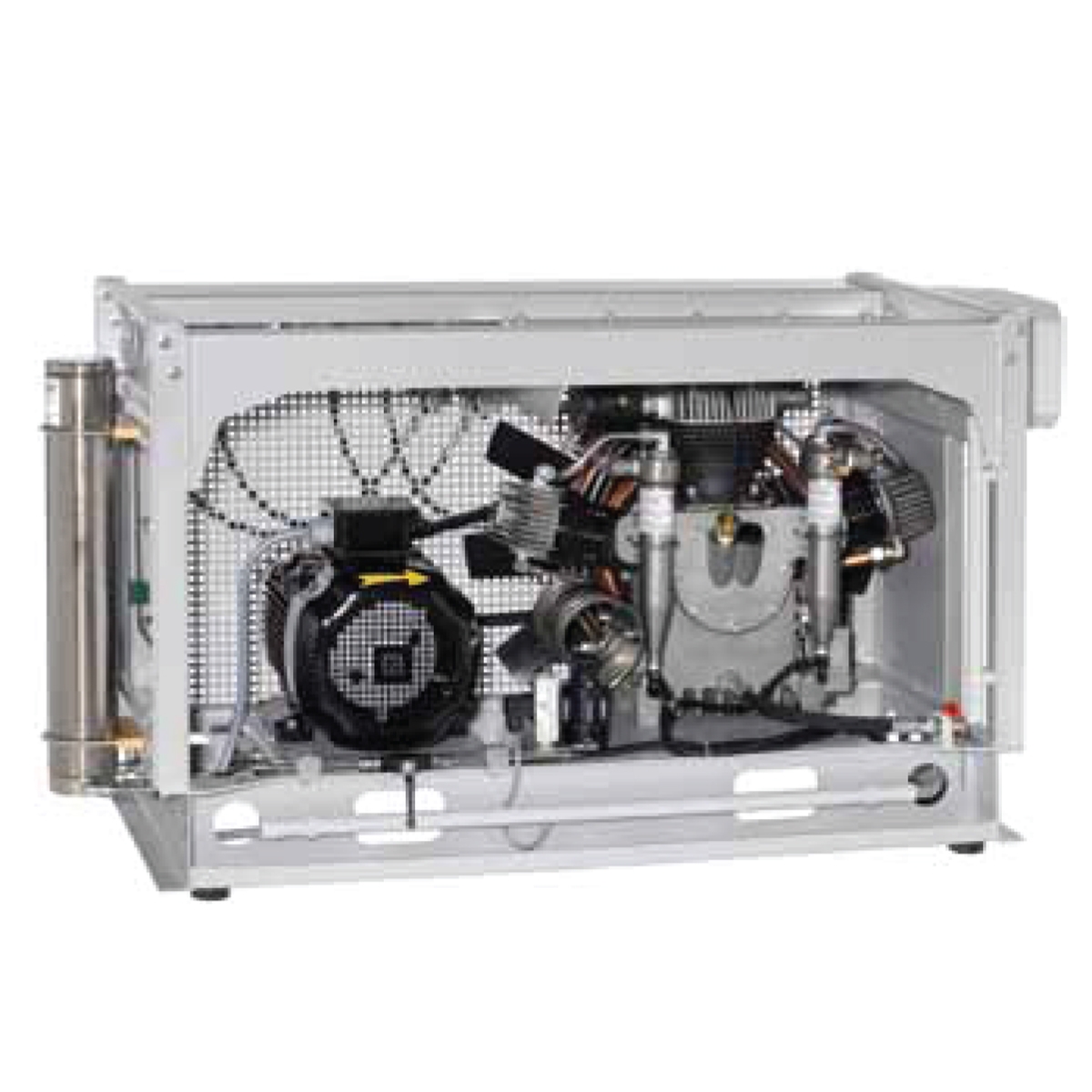

The LW 320 E Al Nautic is designed for mobile use but also suitable for stationary applications.
Description
It can optionally be used as a fully automatic stationary system by adding the available extras. It comes fully wired with star/delta system and with a lightweight and seawater resistant aluminum frame.
Specifications
- Electro motor (E-Motor / 400V / 3 Phase / 50 Hz)
- Seawater resistant aluminum-frame (Colour: RAL 7004)
- Crash frame c/w 4 carrying handles and sling eyes
- Hour counter and integrated pressure gauge
- Manual condensate drain
- 4x Filling hose c/w filling valve
- Pressure maintaining and non return valve
- All pistons c/w steel piston rings
- Low pressure oil pump
- Oil- / Water separators in stainless steel
- Safety valves after each stage
- Filling pressure to your choice (200 or 300 bar)
- Connections to your choice (DIN 200 bar or 300 bar, CGA 200 bar or 300 bar and INT)
- Breathing air purification an accordance to EN 12021
Options
-
Automatic condensate drain
- Automatic stop at final pressure
- Auto start system
- 200 and 300 bar parallel filling pressures
- Additional high pressure outlet
- Oil pressure gauge
- Wheel set
- Special voltages / frequencies on request

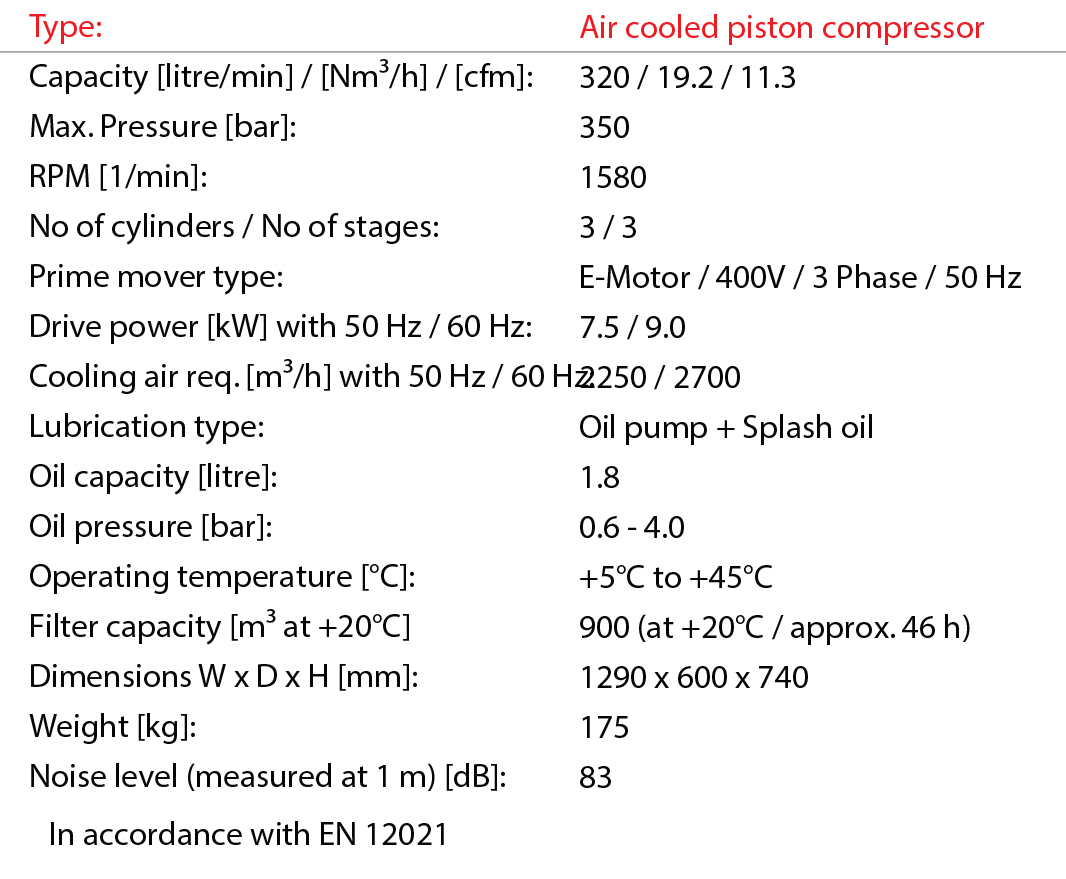

Technical Data
