LHS 41S
SIL Technology Sdn BhdType: Sale

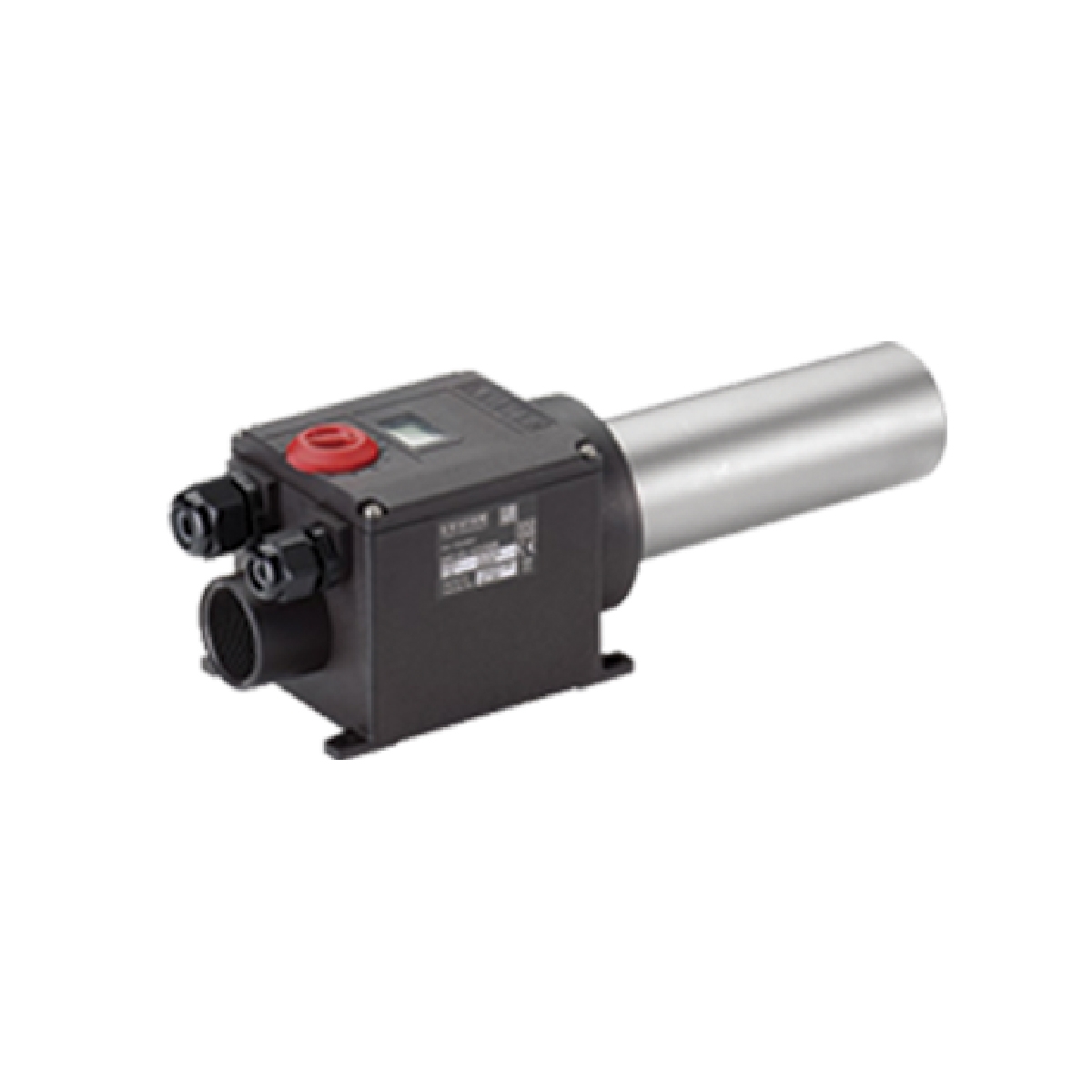

The medium-sized LHS 41 series air heaters cover an extremely wide application range.
Description
- Easy to integrate (mounted from above)
- Overheat detection with alarm output for the heating element
- Tool overheat detection with alarm output
The medium-sized LHS 41 series air heaters cover an extremely wide application range. The small footprint enables easy integration into machines. The heater tube diameter of 50 mm (~2 in.) allows for the passing of sufficient air flow, and also is suitable for high performance applications.
Technical Data
| Attribute | Unit | Value |
|---|---|---|
| Voltage | V~ | 120 |
| Power | W | 2000 |
| Max. air outlet temperature | °C | 650 |
| Max. air inlet temperature | °C | 65 |
| Max. ambient temperature | °C | 65 |
| Relative humidity (non condensing) | % | 5 – 95 |
| Max. inlet pressure | kPa | 100 |
| Size (L × W × H) | mm | 245 × 85 × 86 |
| Weight | kg | 0.85 |
