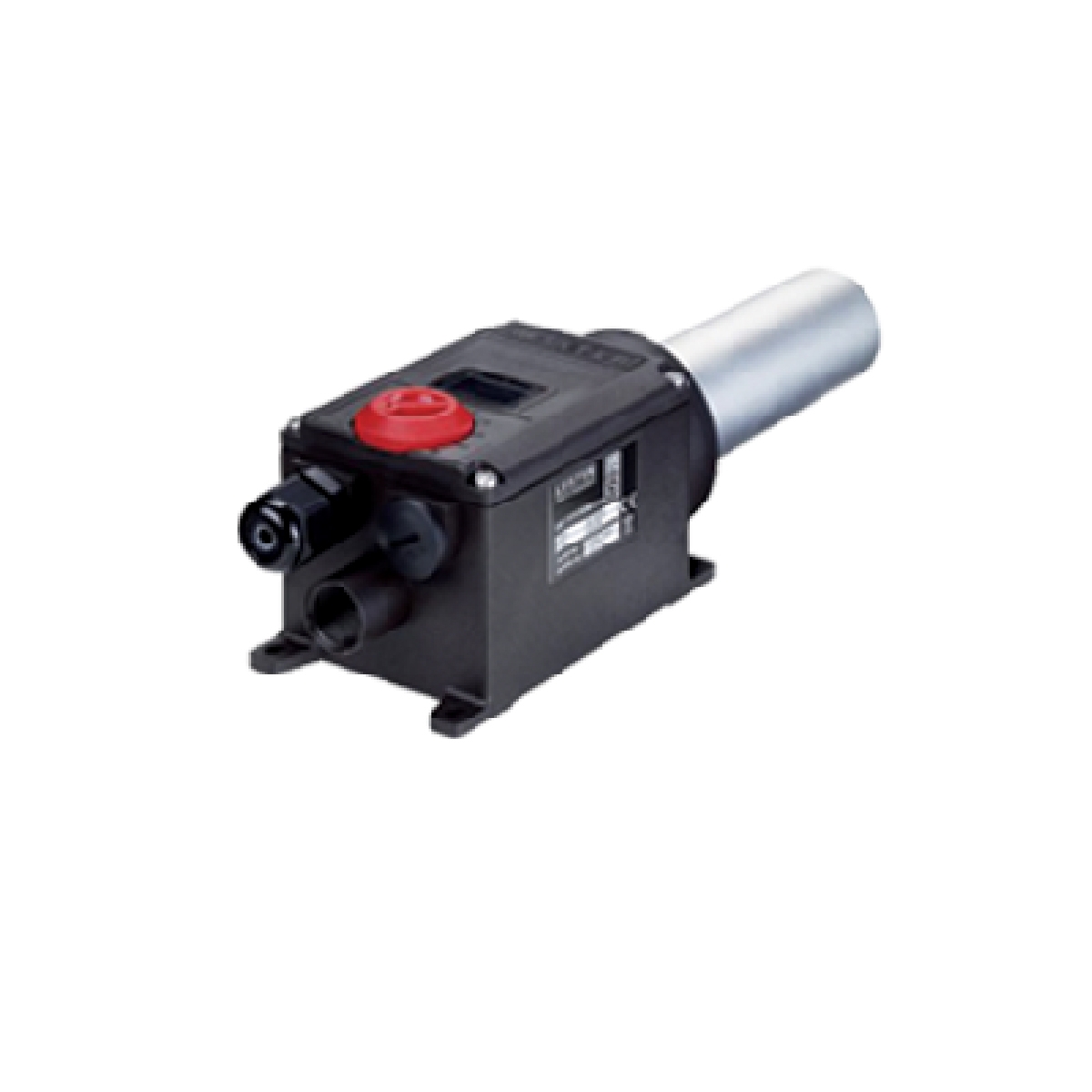

LHS 21L
SIL Technology Sdn BhdType: Sale
These advanced air heaters are distinguished by their extremely small dimensions—especially the lean design (only 67 mm / 2.6 in wide)—as well as their long service life.
Description
LHS 21L
- Easy to integrate (mounted from above)
- Overheat detection with alarm output for the heating element
- Tool overheat detection with alarm output
These advanced air heaters are distinguished by their extremely small dimensions—especially the lean design (only 67 mm / 2.6 in wide)—as well as their long service life. Designed for professional integration into machine systems, the new LHS series enables any specific application. Sterilizing, drying, welding, cleaning, shrinking, shaping, deburring and activating are now more efficient and reliable thanks to Leister’s proven hot-air technology!
Technical Data
LHS 21L CLASSIC - 230 V / 3.3 kW| Attribute | Unit | Value |
|---|---|---|
| Voltage | V~ | 230 |
| Power | W | 3300 |
| Max. air outlet temperature | °C | 650 |
| Max. air inlet temperature | °C | 65 |
| Max. ambient temperature | °C | 65 |
| Relative humidity (non condensing) | % | 5 – 95 |
| Max. inlet pressure | kPa | 100 |
| Size (L × W × H) | mm | 266 × 67 × 66 |
| Weight | kg | 0.65 |
