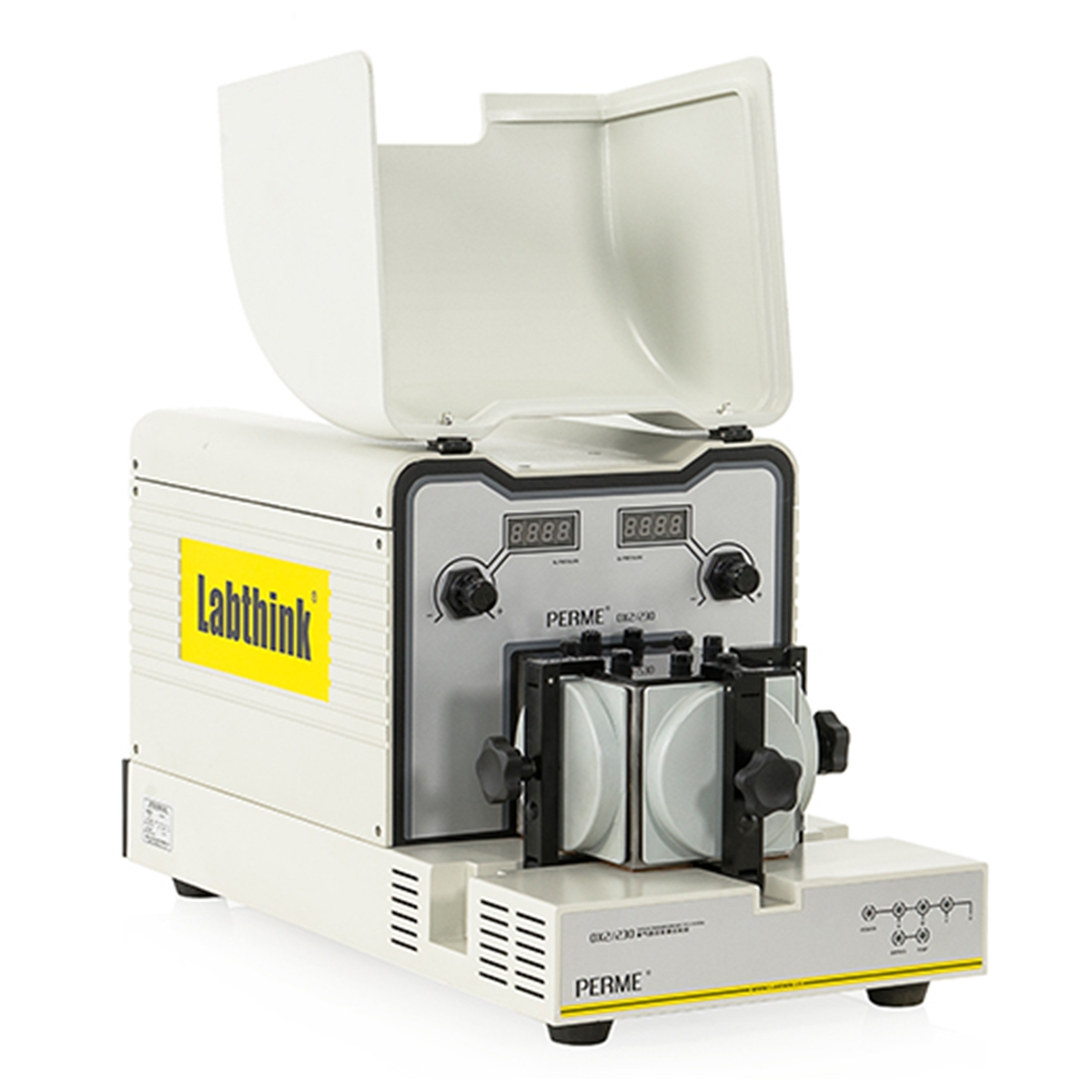

Labthink Oxygen Permeation Test Equipment For Blister Packaging
Yellow Jacket - IndustrialPressType: Sale
High precision trace oxygen transmitter with self-maintenance function Labthink patent design of three diffusion cells integrated in one instrument Latest operating software
Description
High precision trace oxygen transmitter with self-maintenance function Labthink patent design of three diffusion cells integrated in one instrument Latest operating software
FEATURES
3 test modes and is applicable to various materials with high, medium and low oxygen permeability.
Wide range and high precision of temperature and humidity control
3 distinct or equivalent specimens can be tested individually with independent test results
Oxygen transmission rate and water vapor transmission rate can be obtained at one operation
SPECIFICATIONS
PARAMETERS | Film Test | Package Test |
Test Range | 0.01~6500 cm3/m2·d (standard) 0.07~65,000 cm3/m2·d (optional) |
0.0001~60 cm3/pkg·d |
Number of Specimens | 1~3 with independent test results | 1~3 with independent test results |
Resolution | 0.001 cm3/m2·d | 0.00001 cm3/pkg·d |
Temperature Range | 15°C~55°C (standard) | 15°C~55°C (standard) |
Temperature Accuracy | ±0.1°C (standard) | ±0.1°C (standard) |
Humidity Range | 0%RH, 35%RH~90%RH | 0%RH, 35%RH~90%RH |
