Hydraulic Pumps
Newera Tools & Machinery (M) Sdn BhdType: Sale

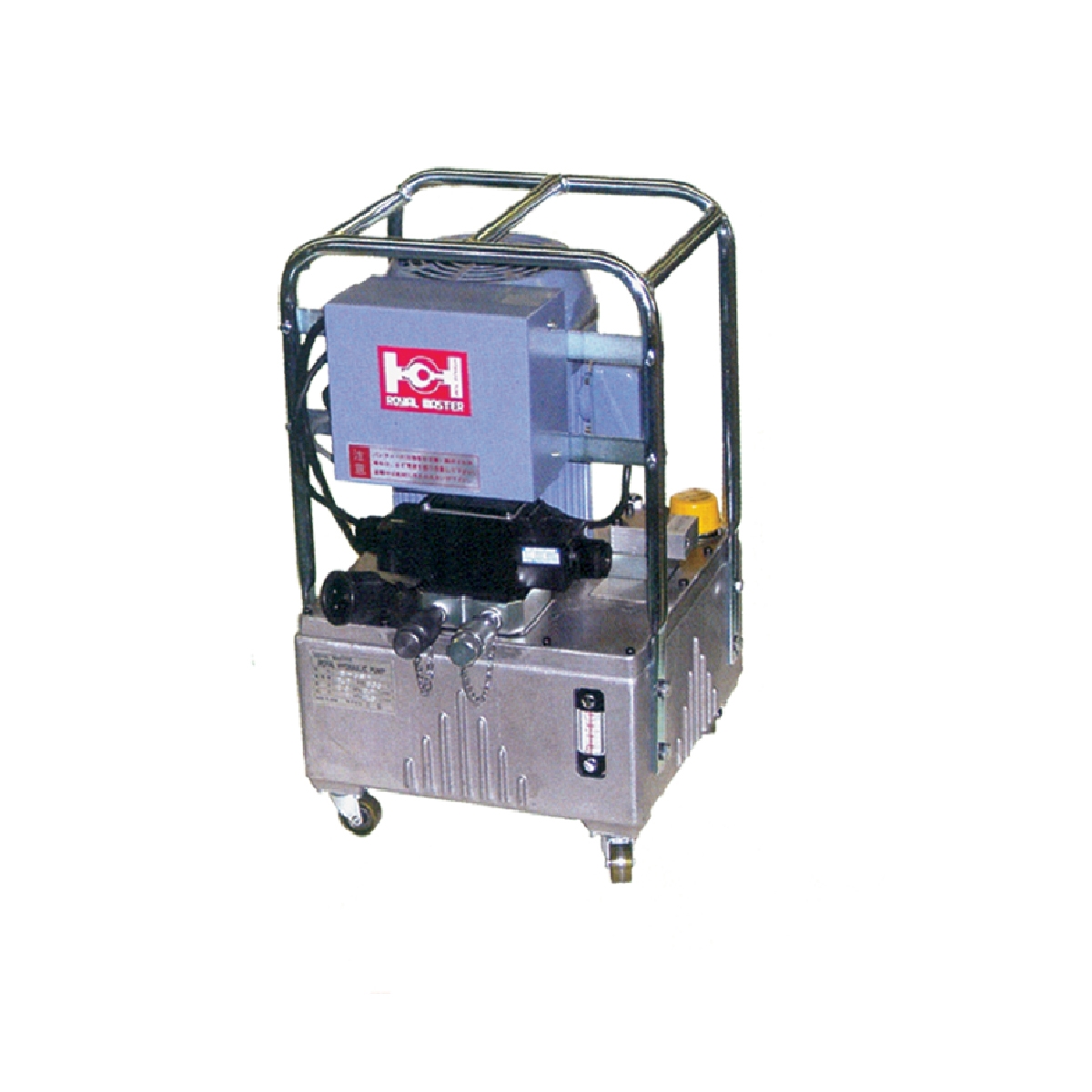

These high-pressue hydraulic pump units, which feature superior durability despite their small size and light weight, have an excelleng track record of about 40 years serving in demanding applications such as hydraulic punchers, and working under harsh conditions including civil engineering projects and foundries.
Description
- These high-pressue hydraulic pump units, which feature superior durability despite their small size and light weight, have an excelleng track record of about 40 years serving in demanding applications such as hydraulic punchers, and working under harsh conditions including civil engineering projects and foundries.
- The single-piece rotor shaft shows its strength in repeated starting and stopping.
- Our wet-type solenoid valve (S-D4-SGS-ADB), which has extremely small leakage, suppresses heat generation and helps our high-efficiency pumps do their jobs.
- To ensure safety, pumps with three-position, four-way solenoid valves have 24 VAC local control circuits.
- We will attach manual changeover valves, pressure gauges, pressure switches, and other other components, and change pumps to your desired circuits.
MODEL D-3SW
| Motor | 2.2kW AC380/415V 50hz 3Phase |
| High Pressure Low Pressure |
72MPa (720bar) 7MPa (70bar) |
| Discharge Rate (HP) Discharge Rate (LP) |
2.3L/min 5.8L/min |
| Reservoir | 12L |
| Weight | 65kg |
| Solenoid Valve | 3-position, 4-way |
MODEL D-2SW-4
| Motor | 1.5kW AC380/415V 50hz 3Phase |
| High Pressure Low Pressure |
72MPa (720bar) 7MPa (70bar) |
| Discharge Rate (HP) Discharge Rate (LP) |
1.5L/min 3.75L/min |
| Reservoir | 10L |
| Weight | 55kg |
| Solenoid Valve | 3-position, 4-way |
MODEL D-1SW-4
| Motor | 0.75kW AC380/415V 50hz 3Phase |
| High Pressure Low Pressure |
72MPa (720bar) 7MPa (70bar) |
| Discharge Rate (HP) Discharge Rate (LP) |
0.75L/min 3.75L/min |
| Reservoir | 7.5L |
| Weight | 38kg |
| Solenoid Valve | 3-position, 4-way |
MODEL 1SW-40
| Motor | 0.4kW AC380/415V 50hz S.Phase |
| High Pressure Low Pressure |
72MPa (720bar) 3MPa (30bar) |
| Discharge Rate (HP) Discharge Rate (LP) |
0.3L/min 1.9L/min |
| Reservoir | 5L |
| Weight | 28kg |
| Solenoid Valve | 2-position, 4-way |
