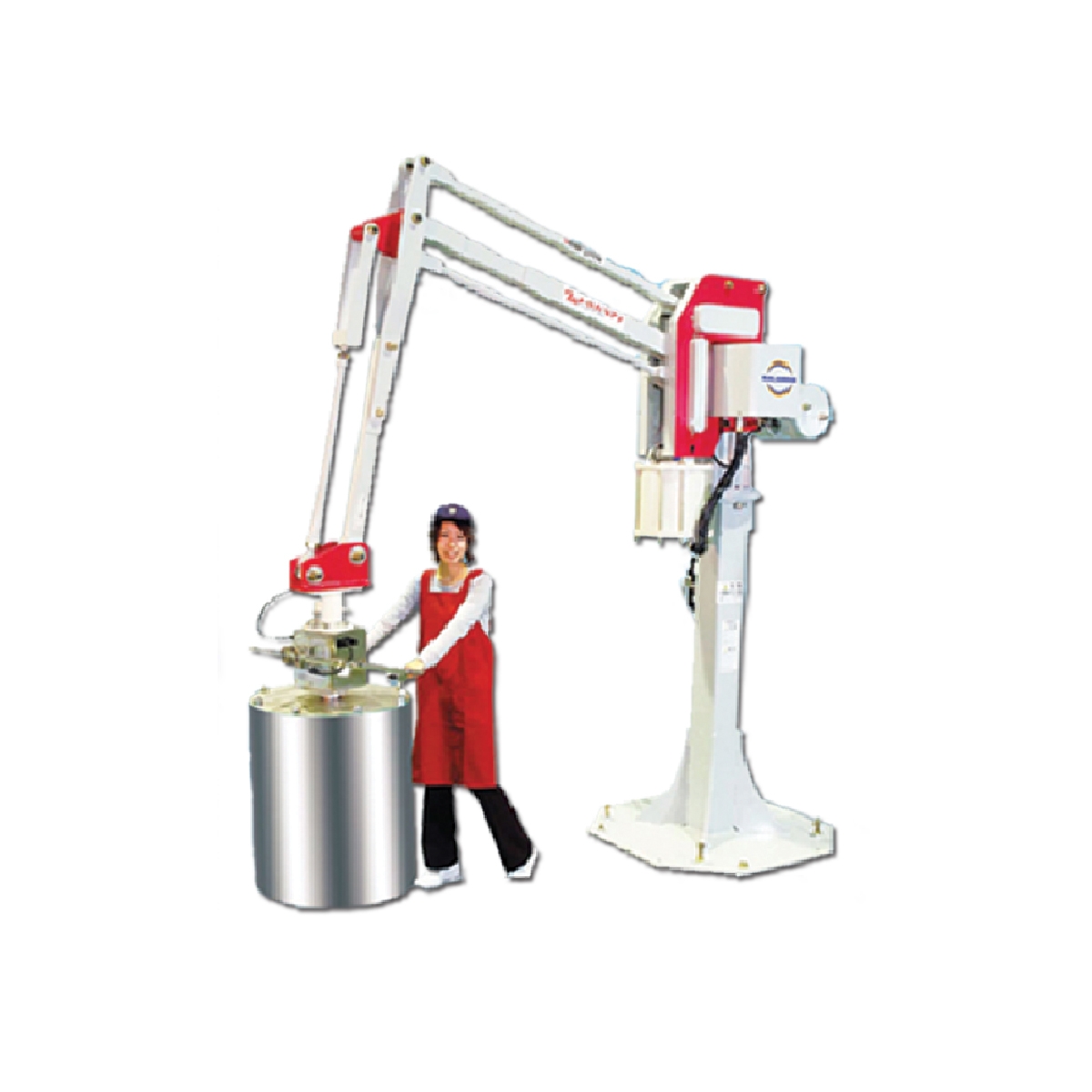

HYBRID BALAMAN
Newera Tools & Machinery (M) Sdn BhdType: Sale
In existing pneumatic balancers, air circuits and cylinders are used with both controls to drive the balancer arm. Hybrid Balamans use hybrid circuits which combined air circuits and microcontroller-driven electronic control circuits to control the balancer. This control circuitry approach leverages the best features of both air and electronic control circuits.
Description
- １.Simple operation with one single pushbutton
- Regarding to pneumatic type with the vacuum type attachment, we have to press vacuum attachment to workpiece, press “UP” button to raise workpiece and press “BALANCE” button in order to pick up and move the workpiece.
- For hybrid type (ULTRA BALAMAN), all operations can be realized by pressing only one button. With pressing at the beginning, a series of operations are performed automatically. Releasing workpiece can be done with the same button.
- 2. Prevent wrong operations, thereby ensuring safe working.
- Because of a series of operations can be done with a single button, there is no need to operate the system that bothers staffs about operation procedures. Moreover, wrong operations are eliminated. When ULTRA BALAMAN detects that workpiece is held in the air or not, it certainly does not release the workpiece although button is pressed while lifting workpiece in the air. Workpieces are released when touched the ground only.
- 3. Energy-saving mode is featured.
- ULTRA BALAMAN will turn into the energy-saving mode when non-operating time continues in certain period, and disconnect the air circuit; therefore, the power consumption of the control circuit suppresses down to the minimum.
- 4. Delicate speed control of crane mode operation.
- By vertical operation lever switch, the balancer speed can freely be controlled by moving the angle of lever.
- In addition, the delicate speed control that could not be realized with existing pneumatic control technology, became possible.
- 5. Adoption of the electronic control system contributes to the drastic increase in the pneumatic power efficiency.
- Computer brain (newly developed control circuit) which is added into the air control, has ultra functions. Automatic weight sensor control, air pressure memory reproduction control , new crane control , safety and many other functions and performances have been added to the standard basic control function. Functions can be freely selected by the switch on the standard operation box panel.
- 6. Adoption of the electronic memory function expanded the compatibility with a variety of works and many kinds of attachments.
- Due to adding the balance pressure memory/reproduction control function to the standard control system, eight weights (or less) of workpieces can be memorized and selected to use. Furthermore, by adding the attachment replacement control function to the standard control system, six attachment weights(or less) can be memorized and selected to use.
- 7. Improvment of ease of maintenance
- ULTRA BALAMAN is equipped with a self-diagnostic function. When machine started, it accesses self-check mode and internal sensors for checking any irregularities in its control components. If problems were detected, result message will be displayed and problem will be solved rapidly.
