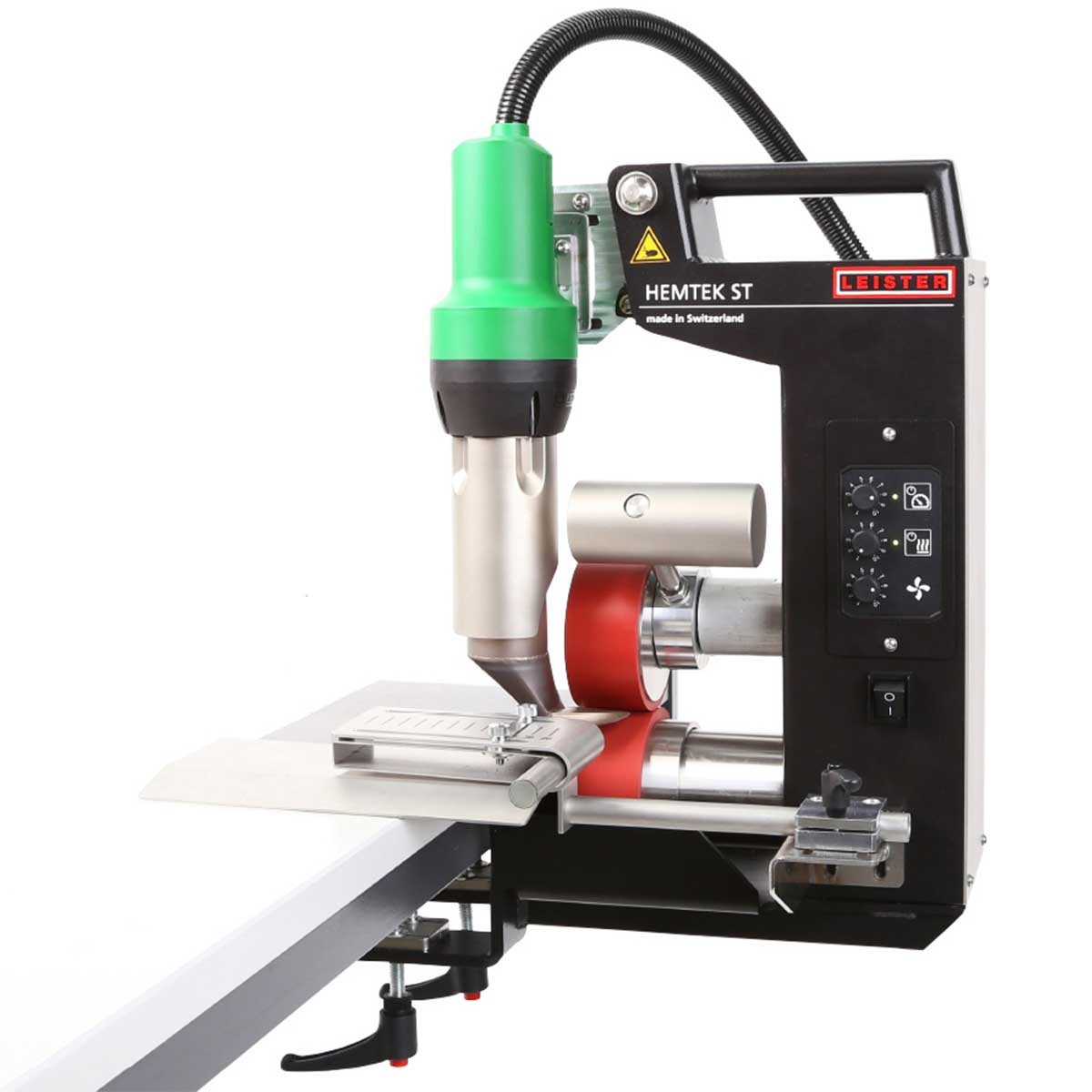

The HEMTEK ST is designed for a wide range of applications and is particularly intuitive to use. Once the machine is mounted, you can start welding immediately. Preparing or finishing with hot-air hand tools is no longer necessary. From now on, you can quickly weld promotional banners or tarpaulins from corner-to-corner with ease.

Thanks to the foot pedal, you can use both hands to guide the material. High welding quality and a stress-free welding experience are guaranteed.

• Welding speeds of up to 12 m (39 ft.) per minute
• Very strong blower motor
• Tool-free setting of the hem guide
• One hem guide – three applications:
  Hem: Closed 20/30/40 mm (0.8/1.2/1.6 inches); Pole pockets: up to 100 mm (4 inches); Hems with rope
• Easy-to-use: Thanks to the foot pedal, your hands are free to guide the material
• Everything in a single step: No need to weld with hot-air hand tools afterward
• All welding parameters are adjustable
• Cooldown mode
• Can be mounted onto almost any table: freely-adjustable quick-clamp lock

HEMTEK ST / 230 V / 40 mm / 3450 W / EU-plug

Article No. *157.860*

Attribute	Unit	Value
Power	W	3450
Voltage	V~	230
Width of welding nozzle	mm	40
Frequency	Hz	50/60
Temperature	°C	100 - 650
Air volume	l/min	1 – 10
Drive Speed	m/min	0.8 – 12
Noise emission level	dB(A)	70 (K = 3 dB)
Size (L × B × H)	mm	433 × 350 × 600
Weight (incl. table mounting)	kg	27
Conformity mark
Protection class I
