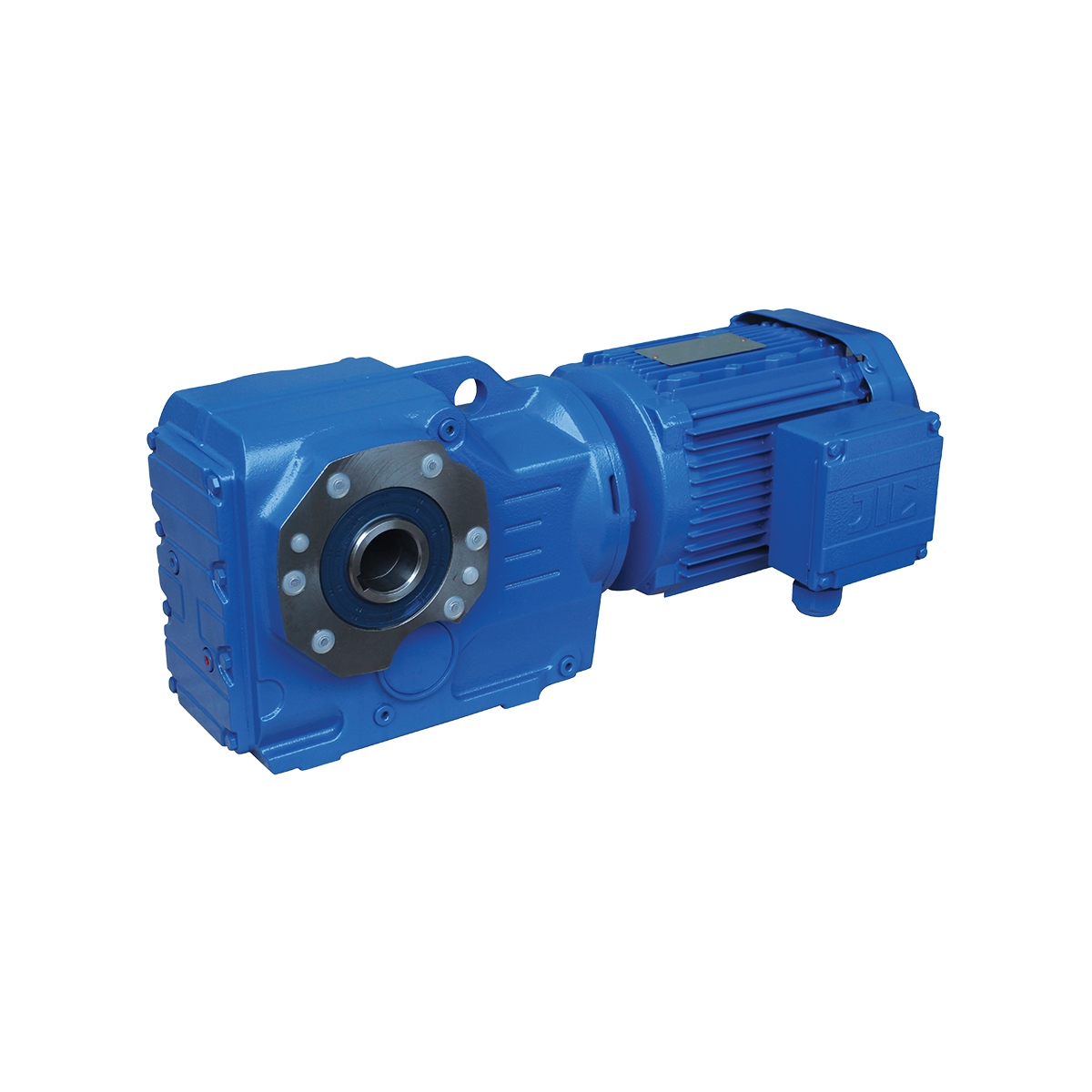

Helical Bevel Gearboxes are designed for continuous duty. The Gearbox housings made of cast iron are developed in 3D CAD and have an optimized structure in terms of rigidity and vibration absorption. Radial shaft seals with dust protection lips prevent oil leaking out of the housing, dust and water from entering it. All the gear wheels are milled and their surfaces hardened. The tooth flanks are ground or honed so that they are convex and corrected in terms of the profile.

MOTOX helical bevel stage is milled, it surface is hardened and it is lapped in pairs. Positioning the bevel gear stage as the second stage means that less noise is emitted. The output shaft is positioned at a right angle to the input shaft.

Technical Data

Types  -  Helical Bevel Gear Units with IEC Adaptor
Sizes  -  9 sizes
Gear Stages  -  1 stage , 2-stage and 3 stage
Power Ratings  -  Up to 200kW
Transmission Ratios  -  i = 3.6 to 50901
Nominal Torques  -  32 to 20000Nm
Mounting Types  -  Foot Mount or Flange Mount
