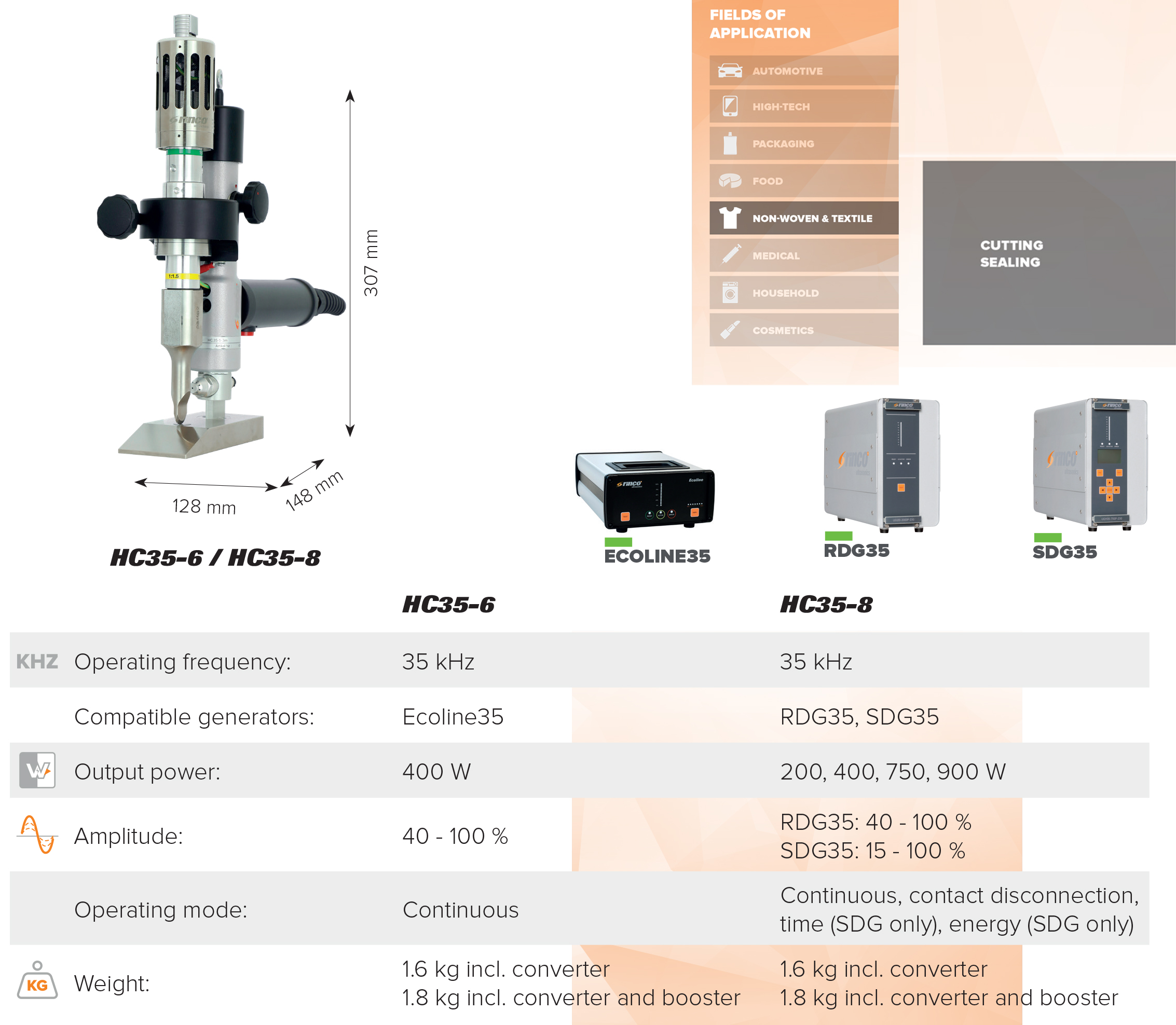

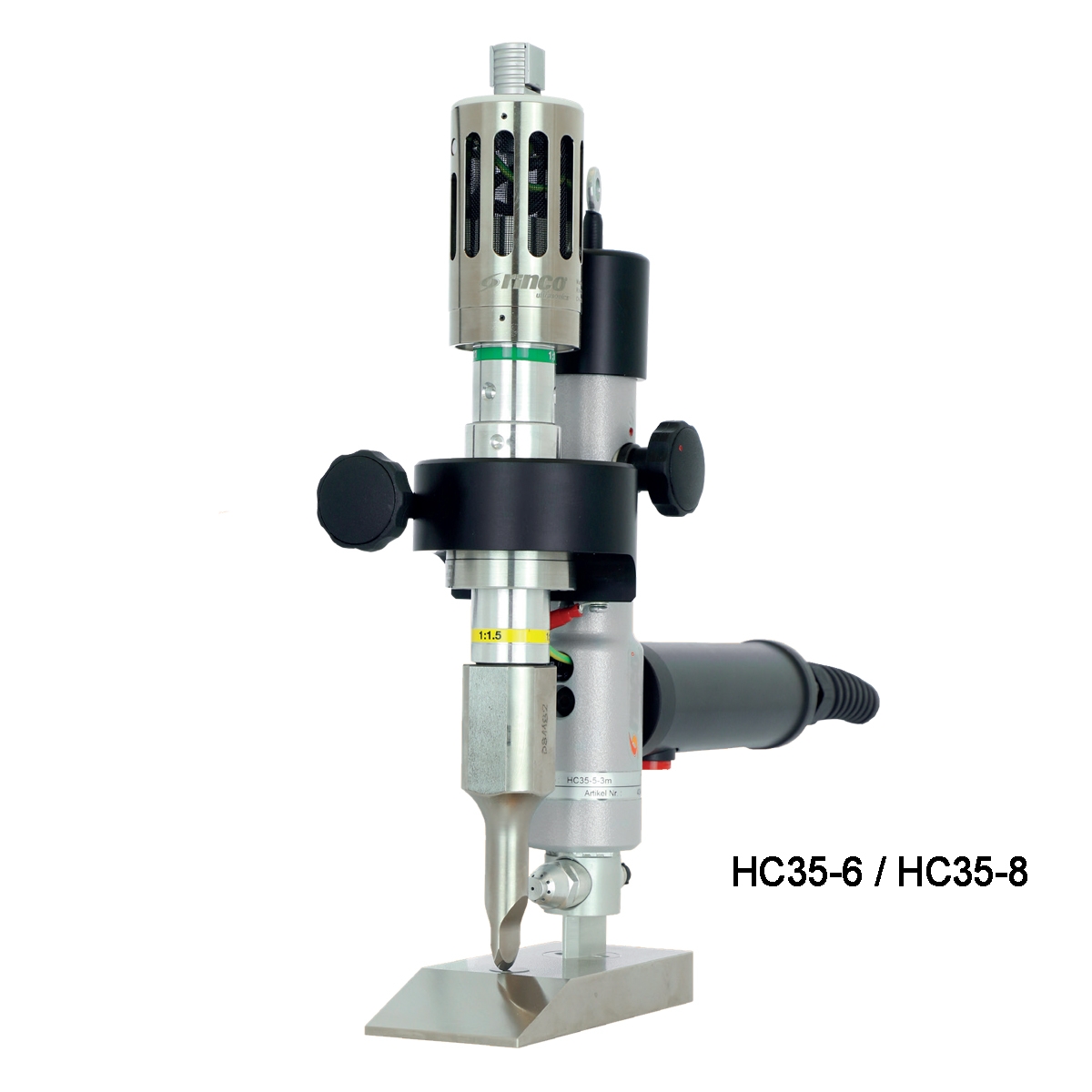

HC35-6 and HC35-8 hand cutters are suitable for manual cutting of textiles and fabrics with a synthetic content. They are suitable for straight cuts as well as for contour cutting.

Thanks to the cutting sonotrode and the flat foot, the textile slides evenly over the foot. The edges are sealed automatically during the cutting process.

The hand cutters are compatible with Ecoline35, RDG35 or SDG35 generators.

ADVANTAGES

Less wear

The carbide plate resp. the cutting wheel can be turned when worn.


Optimised cutting process

Cutting cycles can be shortened with a fast cutting speed and simultaneous edge sealing. The cutting process is triggered by a button on the handle.


Cutting force

The cutting force can be adjusted easily and continuously.


Air cooling

Air cooling for the sonotrode and the converter is pre-integrated for continuous applications


Cuts of high quality

The cut and cut edge are of very high quality due to the ultrasonic technology. The flat foot and Teflon inserts of the HC35-6 and HC35-8 allow the hand unit to slide smoothly and easily over the textile


Easy setup and service

Setup and service are very simple thanks to the lifting function of the oscillator system. It also takes next to no time to adapt to different material thicknesses
