Floor Mounted Combination Unit
Polyscientific Enterprise Sdn BhdType: Sale

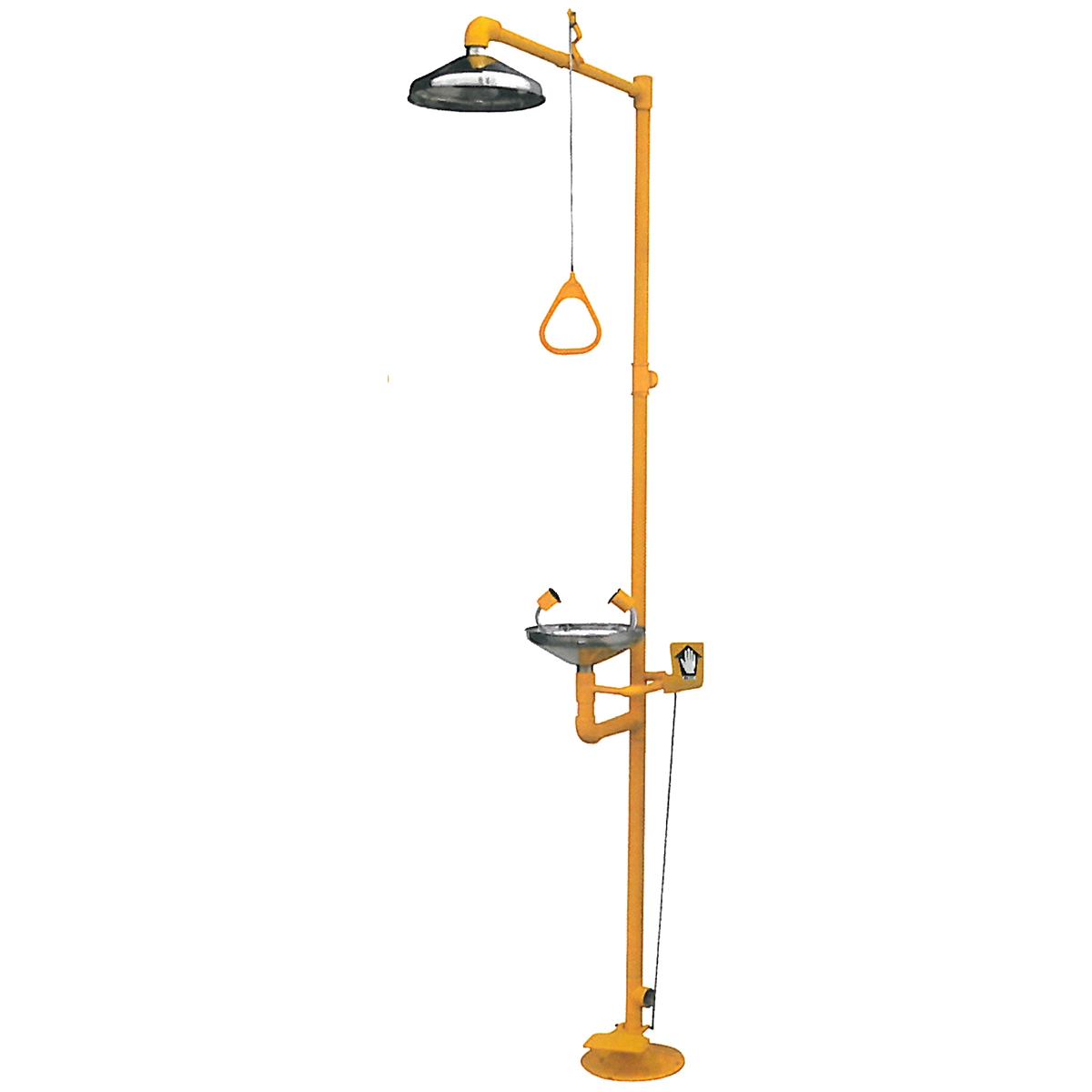

Floor Mounted Combination Unit
Description
Specifications :

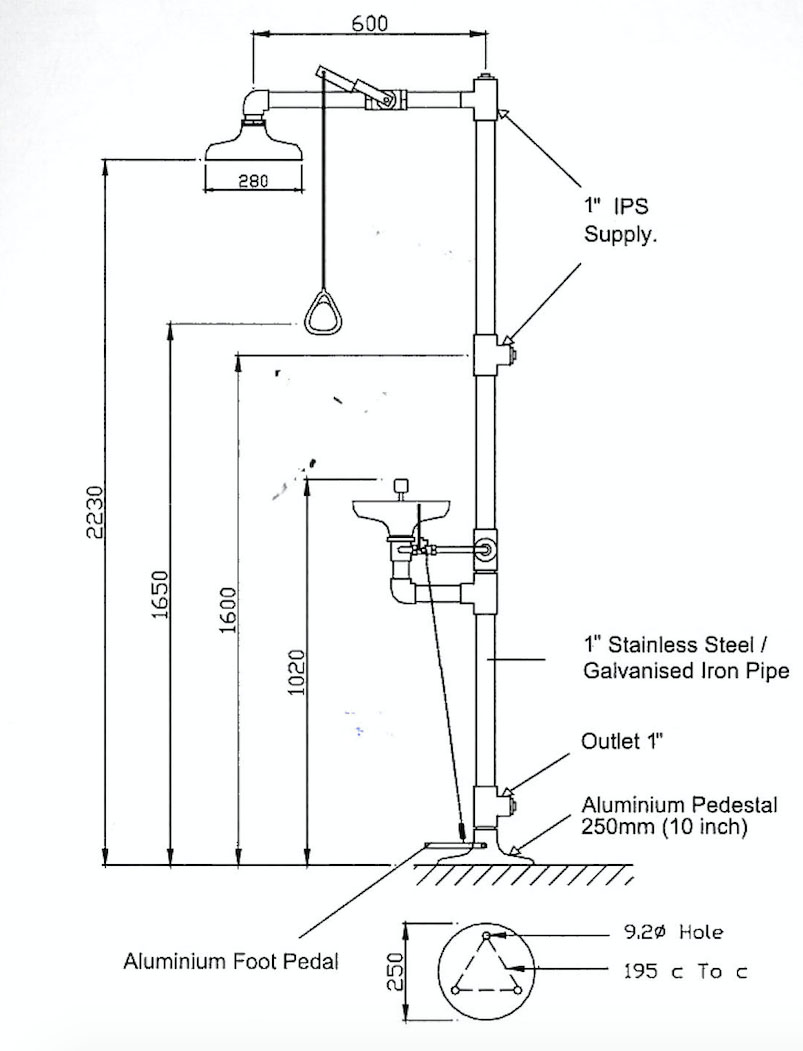

Shower and Eyewash Bowl: 280mm (11") injection moulded in chemical resistant ABS or highly polished stainless steel.
Eyewash Assembly: Stainless steel with ABS sprayheads assembly with twin soft-flow eyewash heads and instant flip-open protective dust cover. The built in automatic compensating valve assures safe steady flow under varying water supply conditions.
Sprayhead also include a filter to protect users against particles from the water flow which may be harmful to the eyes and face.
Control Valves: 1" Fast-action stainless steel ball valve is used for the shower assembly with stainless steel pull rod.
1/2" fast-action stainless steel ball valve is used for the eyewash assembly with stainless steel push plate.
Pedestal: 250mm (10") aluminium pedestal with 3 mounting holes for 9mm bolts. Pedestal is brightly epoxy powder coated in yellow.
Pipe and Fittings: 1" stainless steel pipe / galvanised iron pipe epoxy powder coated to bright safety yellow colour.
Waste: 1" IPS.
Water Supply: 1" IPS.
Compliance: ANSI Z358. 1-2004.
Pipe Threads: Pipe threads in accordance to BS supplied as standards. NPT also available upon request.
Signage: Drench Shower and Eyewash.
Ordering Information
Shower and Eyewash Bowl: 280mm (11") injection moulded in chemical resistant ABS or highly polished stainless steel.
Eyewash Assembly: Stainless steel with ABS sprayheads assembly with twin soft-flow eyewash heads and instant flip-open protective dust cover. The built in automatic compensating valve assures safe steady flow under varying water supply conditions.
Sprayhead also include a filter to protect users against particles from the water flow which may be harmful to the eyes and face.
Control Valves: 1" Fast-action stainless steel ball valve is used for the shower assembly with stainless steel pull rod.
1/2" fast-action stainless steel ball valve is used for the eyewash assembly with stainless steel push plate.
Pedestal: 250mm (10") aluminium pedestal with 3 mounting holes for 9mm bolts. Pedestal is brightly epoxy powder coated in yellow.
Pipe and Fittings: 1" stainless steel pipe / galvanised iron pipe epoxy powder coated to bright safety yellow colour.
Waste: 1" IPS.
Water Supply: 1" IPS.
Compliance: ANSI Z358. 1-2004.
Pipe Threads: Pipe threads in accordance to BS supplied as standards. NPT also available upon request.
Signage: Drench Shower and Eyewash.
Ordering Information
- AT 8034 / AT 8034G
- AT 8035 / AT 8035G
- AT 8036 / AT 8036G
