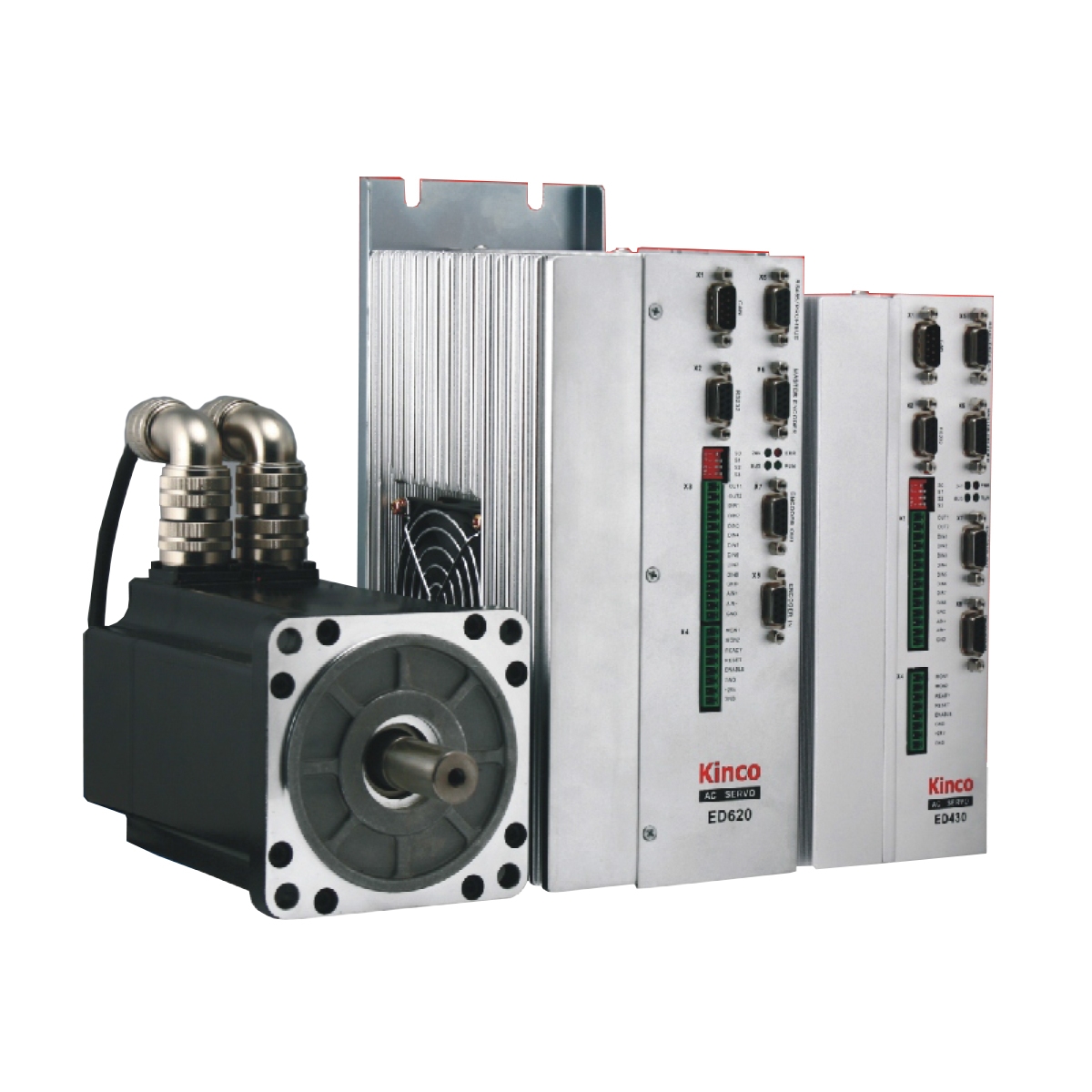

Kinco ED series servo driver is a completely-digitalized servo system supporting control over velocity, position and torque. Functions like drive, control, field bus communication and I/O control are intergrated into the driver, ED drives are capable of storing up to 256 program segments in the internal memory, each segment can have up to 8 sequence commands.
In this way, the driver can store 256 different motion curves containing parameters like acceleration, deceleration, maximum speed, target posotion and etc. In its memory. All Program segments can be executed through the 8 digit input channels on ED drivers can be controlled thriugh versatile communication methods including RS232, RS485, CANopen, Profibus-DP and user-defined protocols.
Multiple ED drives can be networked together for applications can where data exchange among axis is required.
ED drives can be connected to Kinco HMI products via RS232/RS485 connections. Configurations of CANopen or Profibus-DP netwoek are easy with the EDS and GSD files provided.

Basic Functions

• Completely-digitalized control over speed, position and torque
• Fault alarm for events of short circuit, overvoltage/under voltage, over heat, encoder failure, following error and I t error
• Providing communication options Rs-232, Rs-485 or CANopen, Profibus DP
• Internal parameters like velocity, torque, position and current can be controlled by external analogue inputs
• Interlligent brake control
• Up to 27 homing modes
• Enable or reset driver by external signal

Features

• Support master-slave control
• Support up to 256 internal motion curve
• 8 Digital inputs for executing internal sequences
• 2 Digital outputs, used for signal feedback such as position reached, fault alarm etc
• Compatible with traditional control modes, such as Pulse/Direction, CW/CCW, analog control.
