Highlights

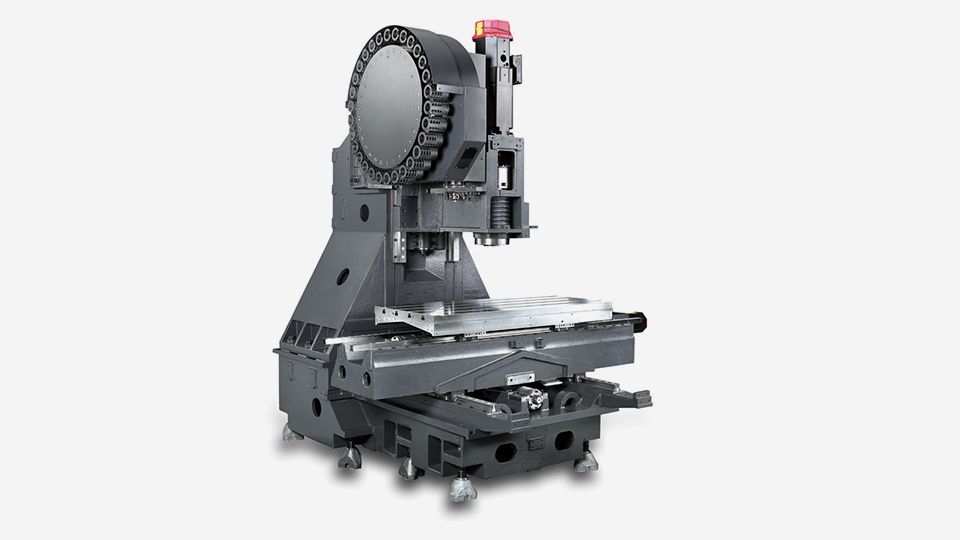

The Largest Machining Area in its Class
- New DNM series machine are equipped with a larger table with increased Y axis travel and higher table load

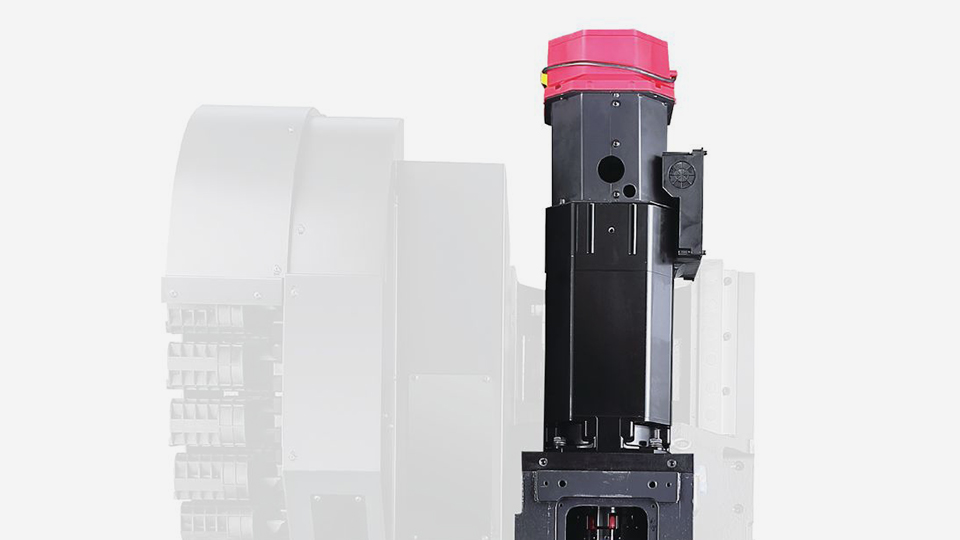

Direct-coupled Spindle for Higher Productivity
- Improves the machine' performance and their environmental-friendliness, compared to belt driven types - Higher productivity is achieved by reducing the tool change time and improving all axis feed rates plus acceleration/deceleration times

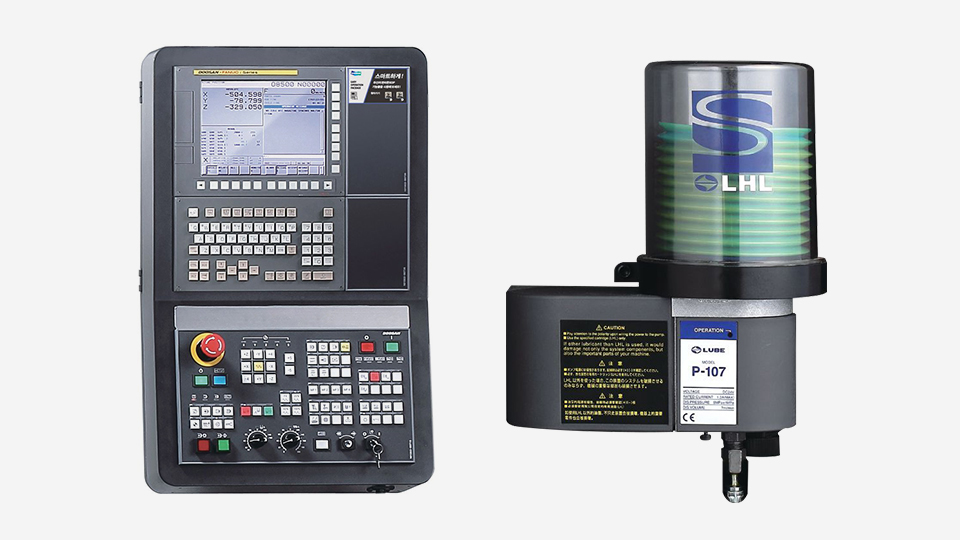

An Environmentally-friendly Machine Designed for Stable and Easy Operation
- The EOP function can be accessed via the pop-up window on the NC main screen - Grease lubrication for axis roller guideways supplied as standard


Travels
X axis travel distance - 1050mm
Y axis travel distance - 570mm
Z axis travel distance - 510mm

Feed rates
X axis rapid traverse - 36m/min
Y axis rapid traverse - 36m/min
Z axis rapid traverse - 30m/min

Main spindle
Max.Spindle speed - 18.5 r/min
Max.Spindle power - 7/24 taper kW
Max.spindle torque - 117.8 N·m
Tool taper - ISO#40

Table
Table Length - 1300mm
Table Width - 570mm
Maximum workpiece weight - 1000kg

Dimensions
Length - 2413mm
Height - 2985mm
Width - 3110mm
Weight - 6500kg

Name	:	KnB Technologies Sdn Bhd (1205278-H)
Business Type	:	Machine Tools
Main Product	:	CNC Milling, CNC Lathe, Grinding, Laser Cutting Machine, EDM, Conventional Machine
Year Established	:	2016
Location	:	Puchong
Website	:	https://www.knbtech.com.my/
