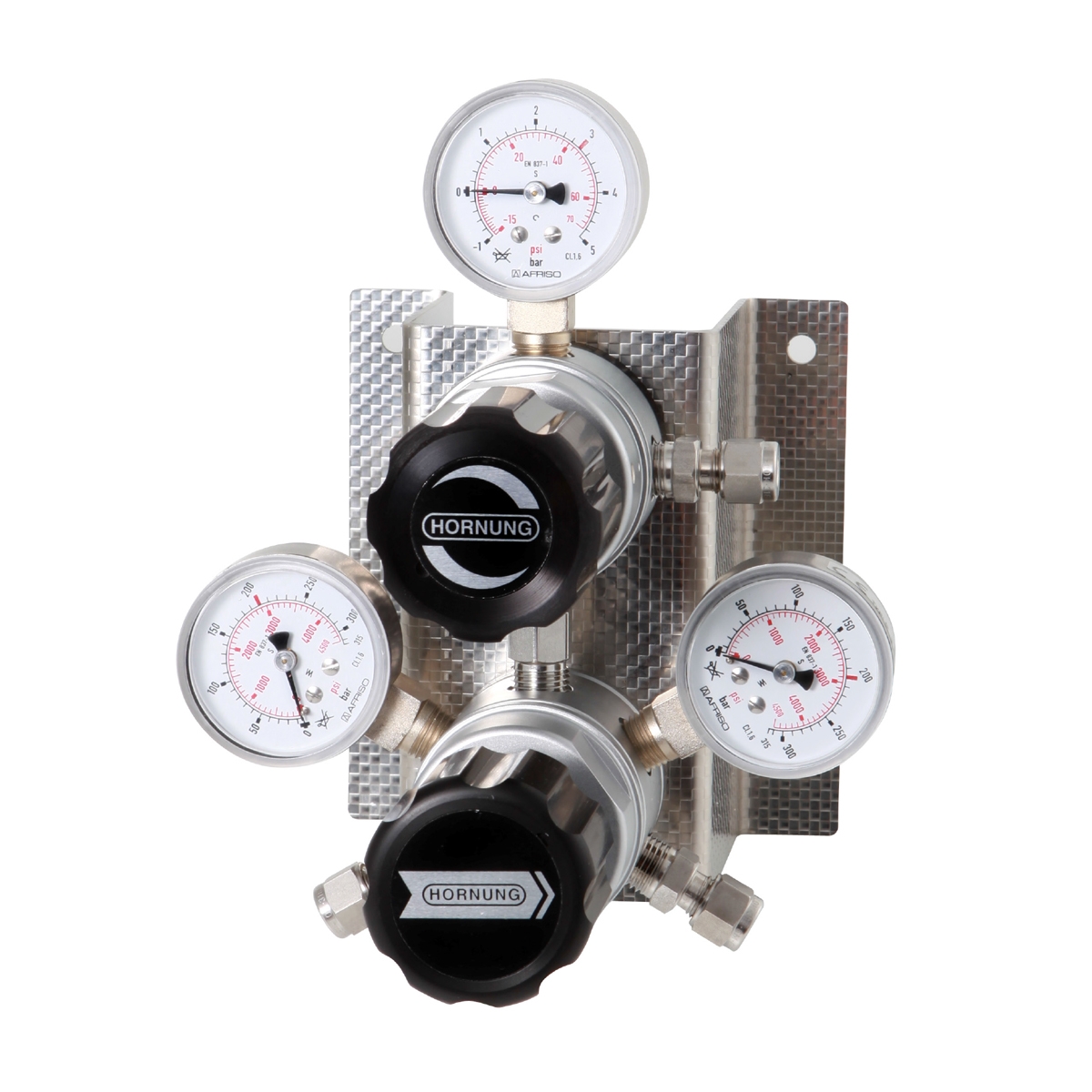

Cylinder station HP 253
Chroma Gas Sdn BhdType: Sale
2x1 cylinder (bundle) dual stage with automatic changeover – sequential version
Description
DESCRIPTION
The HP 253 is a dual stage panel for central gas supply with automatic changeover.
It serves the safe supply of high purity and mixed gases from 2 single cylinders or cylinder bundles.
The changeover sets in as soon as the pressure in the first side sinks below a predetermined level. This process is controlled by two installed regulators which are connected through one mutual housing.
Two stage regulators will be used when a stable outlet pressure is required. The station is mounted on a stainless steel console and in standard version it consists of three pressure regulators and the in- and outlet gauges.
Special characteristics:
The HP 253 is a special version of a typical cylinder station with automatic changeover.
It combines two pressure regulators which are placed in sequential position in one housing to save space.
APPLICATION AREA
Especially for gases with high requirements on purity up to 6.0, safety and density for which an uninterrupted supply overnight and weekends must be guaranteed.
The supply concept can be optimised by options such as contact gauges and gas alarm boxes (see segment 7).
Through our special cleaning system our pressure regulators are suitable for ECD – applications.
QUALITY STANDARD
The company Hornung is certified to DIN EN ISO 9001 and ISO 14001:2009. All single parts are manufactured, assembled and tested by in-house production. The finished parts are therefore under all criteria of German quality control with 100% final inspection.
The HP 253 is a dual stage panel for central gas supply with automatic changeover.
It serves the safe supply of high purity and mixed gases from 2 single cylinders or cylinder bundles.
The changeover sets in as soon as the pressure in the first side sinks below a predetermined level. This process is controlled by two installed regulators which are connected through one mutual housing.
Two stage regulators will be used when a stable outlet pressure is required. The station is mounted on a stainless steel console and in standard version it consists of three pressure regulators and the in- and outlet gauges.
Special characteristics:
The HP 253 is a special version of a typical cylinder station with automatic changeover.
It combines two pressure regulators which are placed in sequential position in one housing to save space.
APPLICATION AREA
Especially for gases with high requirements on purity up to 6.0, safety and density for which an uninterrupted supply overnight and weekends must be guaranteed.
The supply concept can be optimised by options such as contact gauges and gas alarm boxes (see segment 7).
Through our special cleaning system our pressure regulators are suitable for ECD – applications.
QUALITY STANDARD
The company Hornung is certified to DIN EN ISO 9001 and ISO 14001:2009. All single parts are manufactured, assembled and tested by in-house production. The finished parts are therefore under all criteria of German quality control with 100% final inspection.
