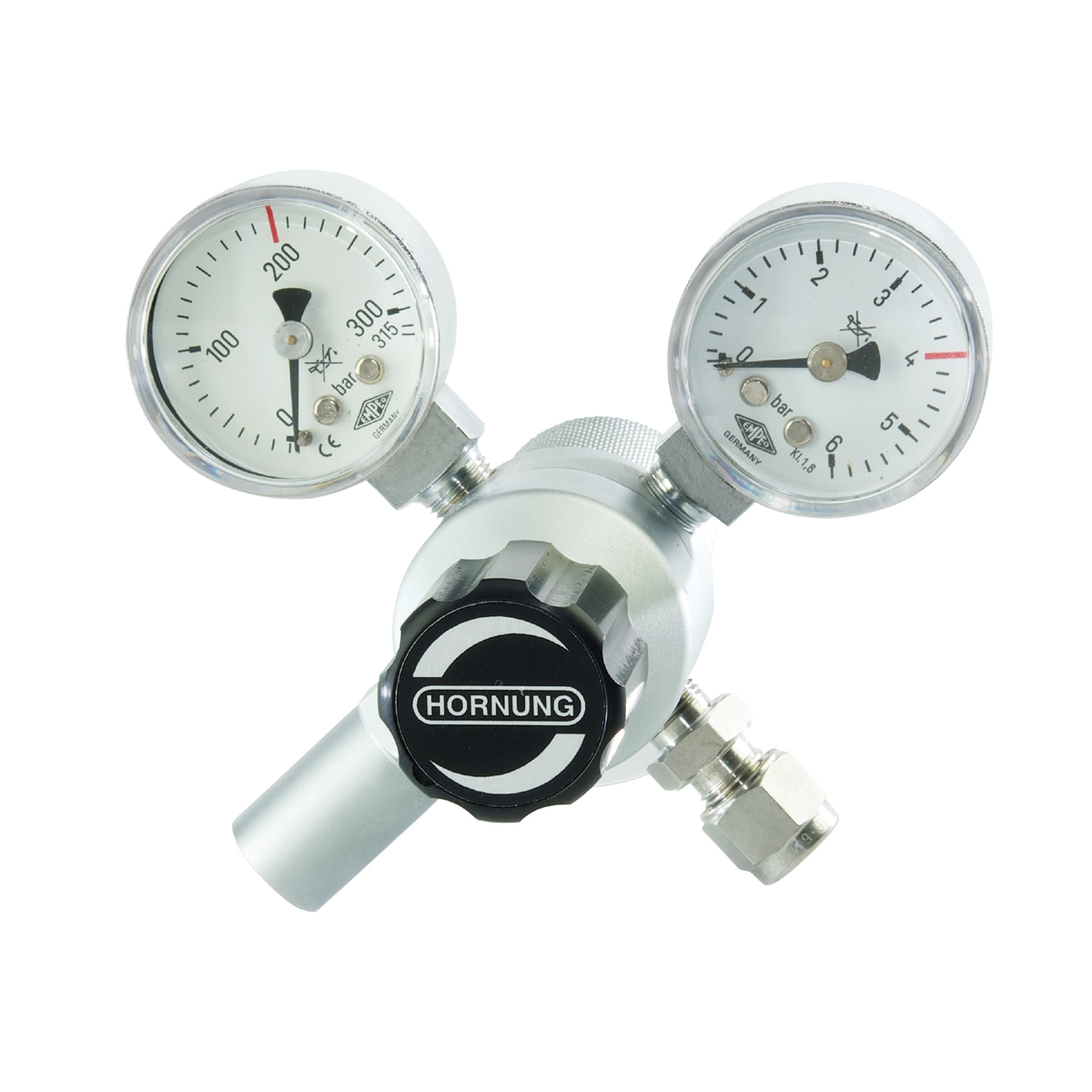

Cylinder pressure regulator HP 104
Chroma Gas Sdn BhdType: Sale
Single stage with balanced poppet in brass, nickel and matt chrome plated or stainless steel
Description
DESCRIPTION
The pressure regulator HP 104 is a single stage cylinder pressure regulator with balanced popped for improved performance (significantly improved outlet pressure accuracy similar to a dual-stage regulator) in stainless steel 1.4404 or brass nickel and chrome plated
and has been developed especially for the gas supply from single cylinders.
· The HP 104 regulator is fitted as a standard with gas specific connections to DIN 477 or any other common national standard and can be connected without the use of special tools.
· The integrated inlet pressure compensation ensures a constant operating pressure during drainage of gas cylinder.
· Ergonomic design, compact dimensions low weight, optimised handling and a minimised gaswetted surface are the main attributes of HP 104 regulator.
· An accurate pressure control and a strict gas blockage enables a distinct and measurable withdrawal of gas and an ideal gas suppliance.
· A specially designed blow-off valve prevents the incurrence of overpressure.
APPLICATION AREA
For gases with high requirements such as gas safety, impermeability and purity of up to 6.0. Special and pure gas applications, the HP 104 is ideal for use in the following areas:
· Pharmaceutical
· Chemical
· Petrochemical
· Environment protection
· Space and aviation technology
· Automotive engineering
· Food processing
· Science and research
Generally in all sectors where high requirements are attached to the withdrawal of gas.
QUALITY STANDARD
The company Hornung is certified to DIN EN ISO 9001 and ISO 14001:2009. All single parts are manufactured, assembled and tested by in-house production. The finished parts are therefore under all criteria of German quality control with 100% final inspection.
The pressure regulator HP 104 is a single stage cylinder pressure regulator with balanced popped for improved performance (significantly improved outlet pressure accuracy similar to a dual-stage regulator) in stainless steel 1.4404 or brass nickel and chrome plated
and has been developed especially for the gas supply from single cylinders.
· The HP 104 regulator is fitted as a standard with gas specific connections to DIN 477 or any other common national standard and can be connected without the use of special tools.
· The integrated inlet pressure compensation ensures a constant operating pressure during drainage of gas cylinder.
· Ergonomic design, compact dimensions low weight, optimised handling and a minimised gaswetted surface are the main attributes of HP 104 regulator.
· An accurate pressure control and a strict gas blockage enables a distinct and measurable withdrawal of gas and an ideal gas suppliance.
· A specially designed blow-off valve prevents the incurrence of overpressure.
APPLICATION AREA
For gases with high requirements such as gas safety, impermeability and purity of up to 6.0. Special and pure gas applications, the HP 104 is ideal for use in the following areas:
· Pharmaceutical
· Chemical
· Petrochemical
· Environment protection
· Space and aviation technology
· Automotive engineering
· Food processing
· Science and research
Generally in all sectors where high requirements are attached to the withdrawal of gas.
QUALITY STANDARD
The company Hornung is certified to DIN EN ISO 9001 and ISO 14001:2009. All single parts are manufactured, assembled and tested by in-house production. The finished parts are therefore under all criteria of German quality control with 100% final inspection.
