Features :

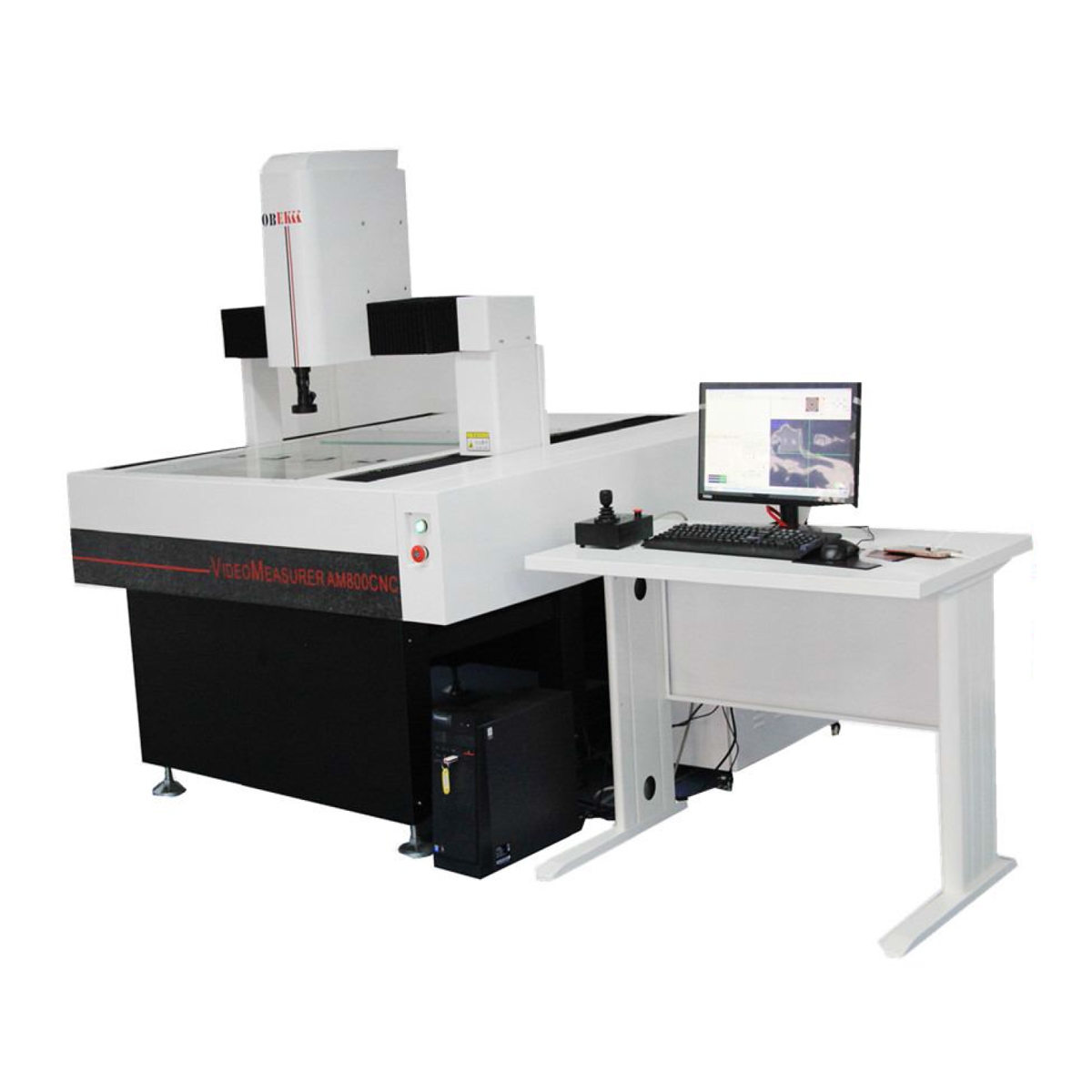

• Sturdy bridge type construction with long-travel automatic vision measurement.
• Granite base keeps machine movement steadily.
• Auto-focus for height measurement, optional for touch probe and laser sensor.
• 4-axis CNC controls, full-automatic measurement
• Being equipped with navigational body tube performs a function of map navigation.
• 1.3MP digital Camera
• Programmable 4 rings 8 segments ring light for surface illumination, LED light for profile illumination
• “RSF” linear encoder with high resolution of 0.1μm
•  “HIWIN” SP Grade ultra precision linear guideway
• “Panasonic” low noise high performance synchronous AC servo motor

Optional Part:
1. Renishaw MCP probe
It’s mainly used for the measurement such as: Spatial height, spatial flatness, cylinder, cone, spherical point, spatial surface, it’s contact measurement.

2. Omron laser sensor

It’s commonly used for the measurement such as Mobile panel, LCD backlight module, as well as automotive and mold parts for high-precision measurement requirements, it’s non-contact measurement.


Software (SBK-CNC Full Automatic measuring software)

• Element measurement, It can measure 12 elements (point, line, circle, arc, ellipse, rectangle, groove, ring, distance, angle, open cloud line, closed cloud line)
• Macro measurement function, to associate some of the measurement construction commands to a button, reduce the number of users to operate the mouse, improve work efficiency.
• Automatic capture measurement, using the mouse circle to hold the edge of the workpiece, the line, circle, or arc can be obtained automatically
• Element structure, The construction of elements provides 10 construction methods: translation, rotation, extraction, combination, parallelism, image recognition, symmetry, intersection.
• Rich display results, The measurement results of various elements show that the amount of information is large enough to meet the needs of various customers
• Can display optical magnification and screen magnification,
• Coordinate system, the multiple coordinate system can be set up according to the drawing, and the coordinate transformation of each coordinate system can be realized.
• User program, Unrestricted user program recording, editing, saving, and exhaling function, The user program can record and edit all the user actions to achieve the replication measurement and greatly improve the measurement efficiency.
• Auxiliary dimming, The dimming indicator will indicate to the user what time the best light intensity, measuring error caused by light is avoided
• Graphic function, With perfect graphics processing and display function (zoom, translation, window display, partial enlargement and full screen display)
• Annotation function, It can directly mark the angle, distance, X direction distance, Y direction distance, circle (ARC) radius, circle (ARC) diameter and arc length in the drawing area and image area element graphics
• System error correction, The software has a system error correction function.
• Scan function
• Large MAP function, The workpiece can be divided into many areas to take pictures, form a large map, and can be tagged on the map.
• Language conversion, Support all languages
• Report function, The measurement data can be exported to Excel, Word, AutoCAD and TXT.
