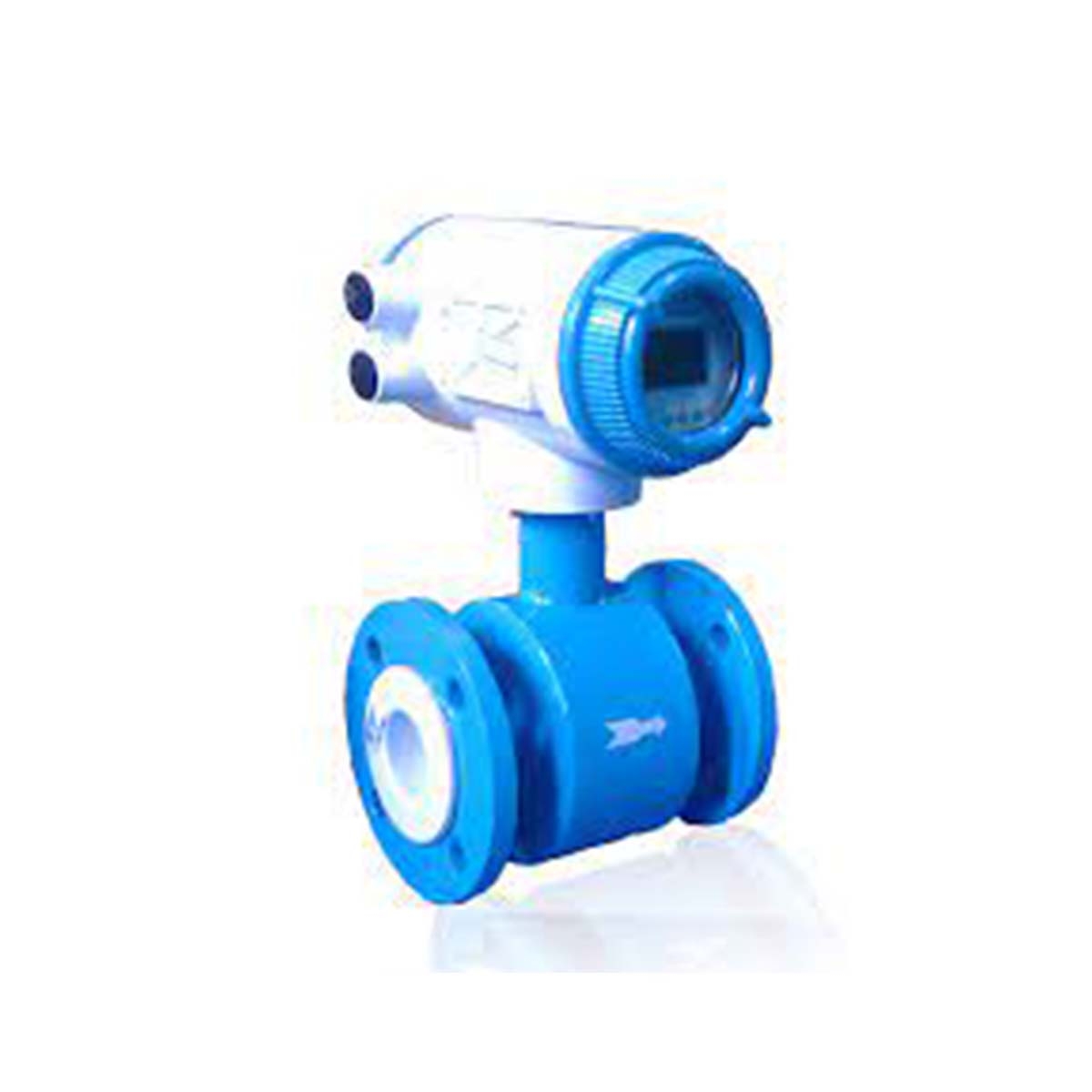

AYT Electronmagnetic Flowmeter
Pump Tech Engineering Sdn BhdType: Sale
AYT Electronmagnetic Flowmeter
Description
Features:
1.There is no movable part in the pipes ,hence ,nothing resista the flow and to cause pressure loss or jamming.
2.Measurement is free from series of influences e.g medium density,elasticity ,temperature or electrical conductivity.
3. Corrosion resistance and wearability standard among other indexes are met via selecting different materials for lining and electrodes.
4 .The products are equipped with high resoluction backlighted LCD display, which is integrated with menus with both language of english and chinese, it is up to the users' needs to modify the measuring range on site.
5.The devices have also been integrated with series of communiction prorocals i.e.RS485. RS232 ,HART and MODBUS.
6. With programmable low frequency rectangular wave excitation,flow stability is promoted on less power loss.
7. Both power off protection and overrang alarming orients for measured calue,besides,it is also possible to change medium flow direction via programming the integrated sensor,which means installation of sensors are not limited to flow direction and messuring is operatable with both the flow directions.
8. Thers instrument do not suit for measuring gas flw or nonconductive liquids.
Flow direction :
Positive and negative net flow
Measuring extention ratio :
150:1
Repeating erro :
0.1% of the meterage
Accuracy grade :
pipeline style: 0.5 1.0
The temperature of themeasured medium :
Ordinary rubber underlay:-20~+60
High temperature rubber underlay:-20~+90
Polythene underlay:-30~+100
High temperature underlay:-30~+180
Rating work pressure :
Pipeline style : DN10-65:<2.5MPA
DN80-DN150:<1.6MPA
DN200-DN 1200:<1.0MPA
ELECTROMAGNETIC FLOWMETER. SIZES FROM 25MM TO 400MM
1.There is no movable part in the pipes ,hence ,nothing resista the flow and to cause pressure loss or jamming.
2.Measurement is free from series of influences e.g medium density,elasticity ,temperature or electrical conductivity.
3. Corrosion resistance and wearability standard among other indexes are met via selecting different materials for lining and electrodes.
4 .The products are equipped with high resoluction backlighted LCD display, which is integrated with menus with both language of english and chinese, it is up to the users' needs to modify the measuring range on site.
5.The devices have also been integrated with series of communiction prorocals i.e.RS485. RS232 ,HART and MODBUS.
6. With programmable low frequency rectangular wave excitation,flow stability is promoted on less power loss.
7. Both power off protection and overrang alarming orients for measured calue,besides,it is also possible to change medium flow direction via programming the integrated sensor,which means installation of sensors are not limited to flow direction and messuring is operatable with both the flow directions.
8. Thers instrument do not suit for measuring gas flw or nonconductive liquids.
Flow direction :
Positive and negative net flow
Measuring extention ratio :
150:1
Repeating erro :
0.1% of the meterage
Accuracy grade :
pipeline style: 0.5 1.0
The temperature of themeasured medium :
Ordinary rubber underlay:-20~+60
High temperature rubber underlay:-20~+90
Polythene underlay:-30~+100
High temperature underlay:-30~+180
Rating work pressure :
Pipeline style : DN10-65:<2.5MPA
DN80-DN150:<1.6MPA
DN200-DN 1200:<1.0MPA
ELECTROMAGNETIC FLOWMETER. SIZES FROM 25MM TO 400MM
