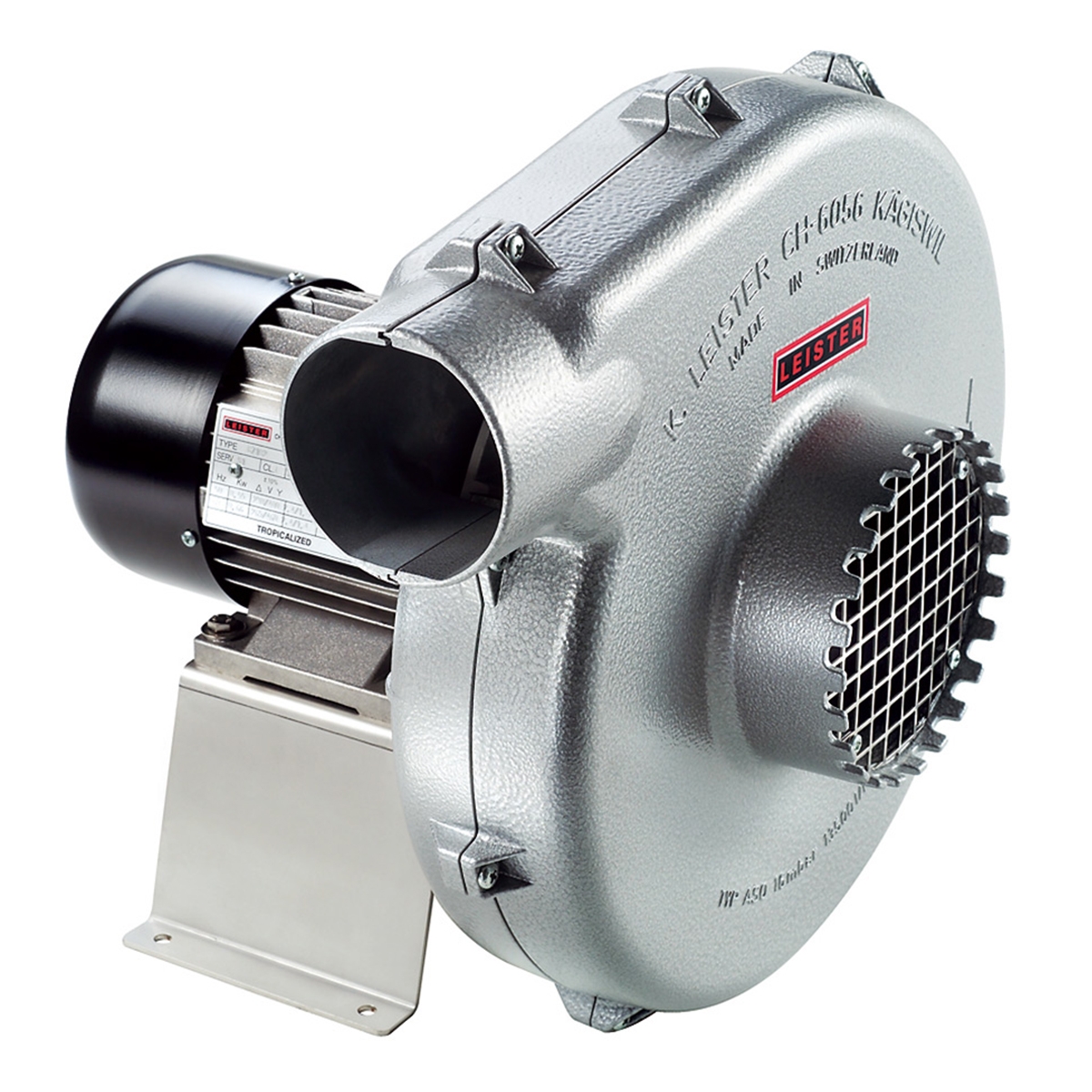

At 60 Hz, the ASO delivers 15 900 l/min. When used with the appropriate accessories it can supply several Leister air heaters in parallel.


ASO - 3 x 230/400 V / 60 Hz / without cord++

Article No. *103.507*

Attribute	Unit	Value
Frequency	Hz	60
Voltage	V~	3 x 230/400
Air volume (20°C)	l/min	15900
Pressure static	kPa	2.4
Power	W	550
Max. ambient temperature	°C	60
Max. air inlet temperature	°C	200
Noise emission level	dB(A)	70
Environmental protection	IEC 60529	IP 54
Outside diameter air inlet	mm	134
Air outlet (external)	mm	90
Weight	kg	15.0
Conformity mark
Protection class I
