ALLEN-BRADLEY PROGRAMMABLE CONTROLLERS - MODEL : COMPACTLOGIX
Ultech Engineering Sdn BhdType: Sale
PRODUCT NAME: PLATFORM PROCESS CONTROL (ALLEN BRADLEY)
PRODUCT MODEL: COMPACTLOGIX
PRODUCT MODEL: COMPACTLOGIX
Description
PRODUCT NAME: PLATFORM PROCESS CONTROL (ALLEN BRADLEY)
PRODUCT MODEL: COMPACTLOGIX

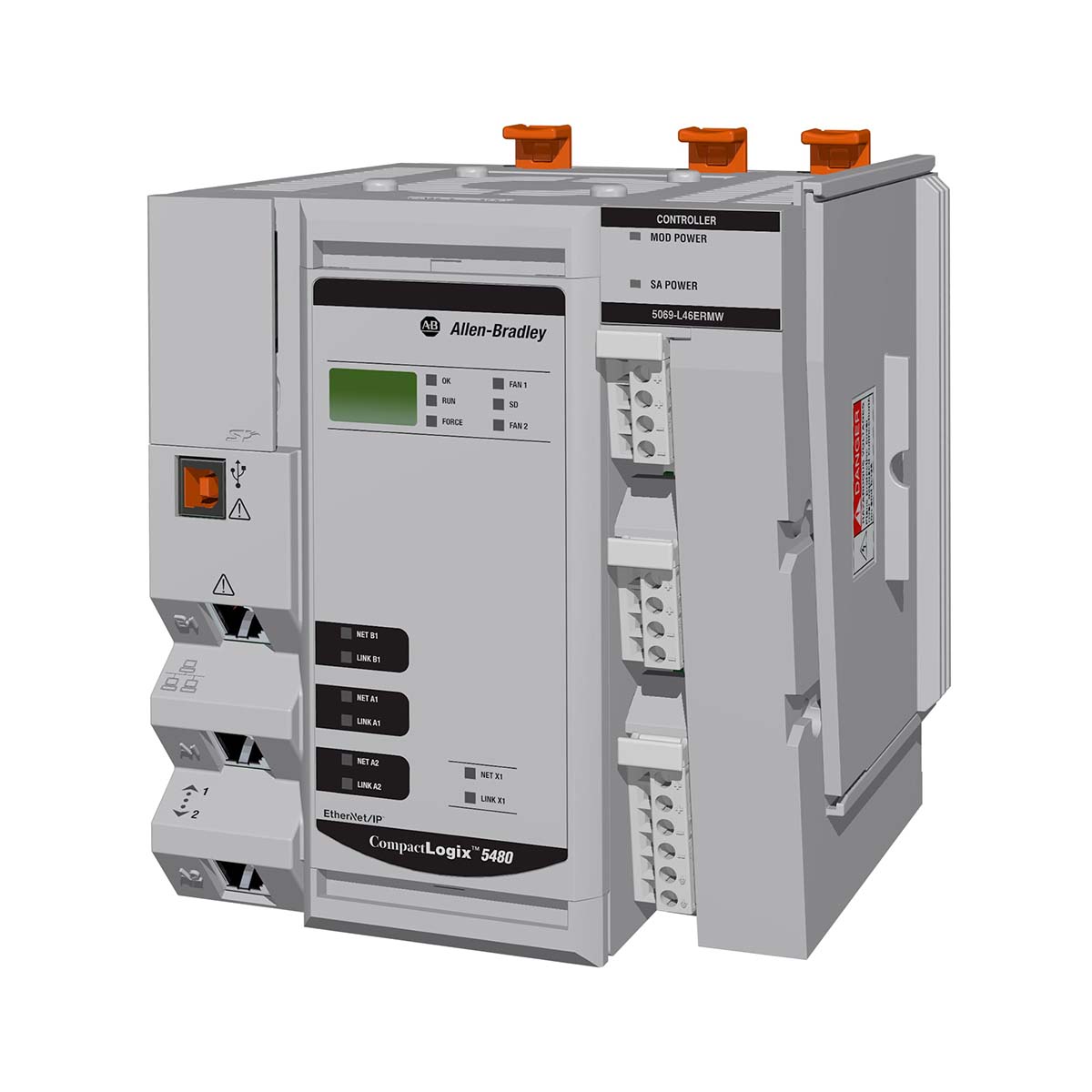

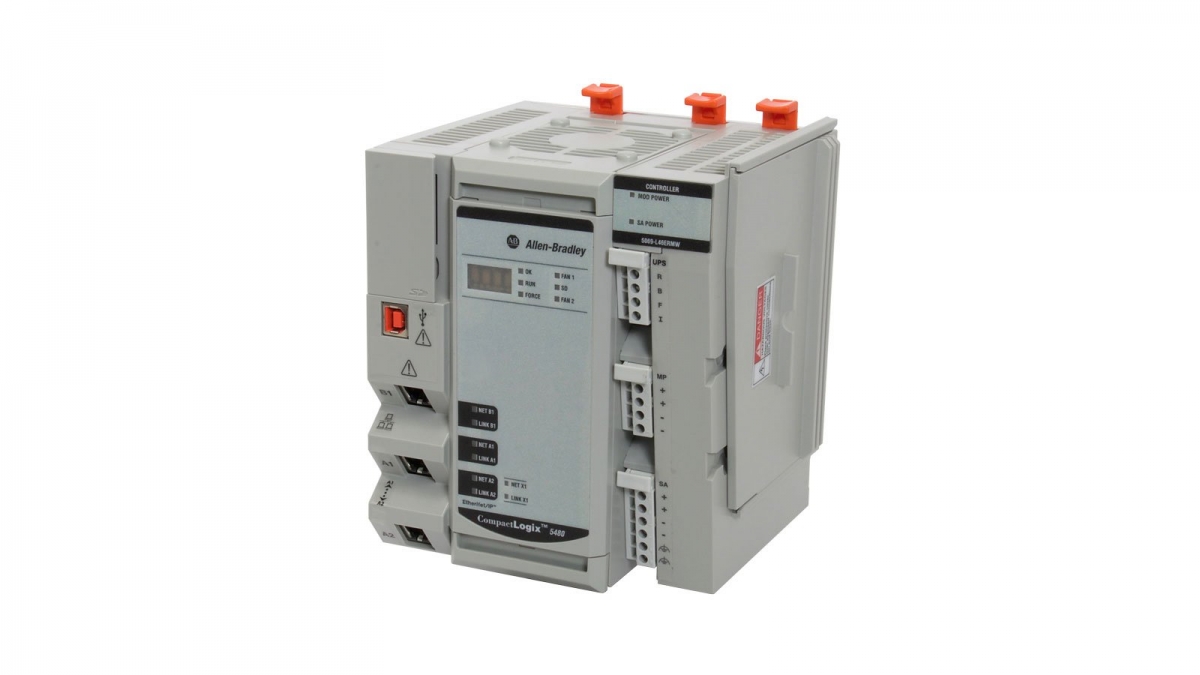

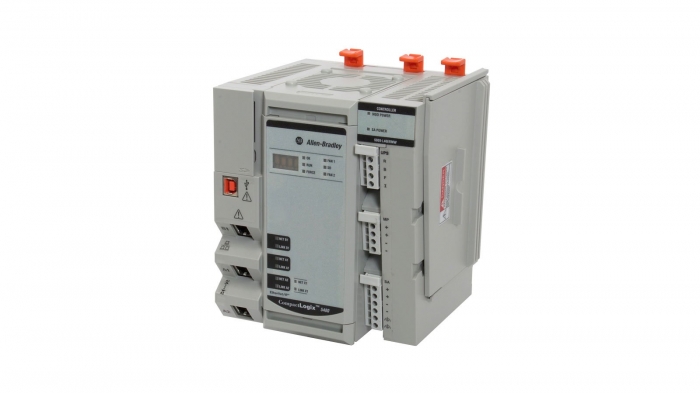

A) COMPACTLOGIX 5480 CONTROLLERS
OVERVIEW:
-PROVIDES A LOGIX BASED REAL-TIME CONTROLLER THAT RUNS AN INSTANCE OF WINDOWS 10 IOT ENTERPRISE.
-SUPPORTED IN STUDIO 5000 LOGIX DESIGNER® VERSION 32.
-IS IDEAL FOR MID-SIZE TO LARGE APPLICATIONS REQUIRING HIGH PERFORMANCE CONTROL AND DATA THROUGHPUT.
-ENABLES HIGH-SPEED I/O, MOTION CONTROL, AND DEVICE LEVEL RING/LINEAR TOPOLOGIES.
-INCLUDES THREE GBE ETHERNET/IP PORTS THAT ENABLE HIGH-SPEED COMMUNICATIONS, I/O, AND MOTION CONTROL (TWO ARE CONFIGURABLE, AND SUPPORT DUAL IP ADDRESS OR DEVICE LEVEL RING).
-INCLUDES ONE GBE ETHERNET PORT AS A DEDICATED COMMERCIAL OS NETWORK INTERFACE.
-SUPPORTS UP TO 31 LOCAL BULLETIN 5069 COMPACT I/O™ MODULES.
-OFFERS ENHANCED SECURITY FEATURES THAT INCLUDE DIGITALLY-SIGNED CONTROLLER FIRMWARE, CONTROLLER-BASED CHANGE DETECTION, AND A LOG OF ROLE-BASED ACCESS CONTROL TO ROUTINES AND ADD-ON INSTRUCTIONS.
-ALLOWS USERS TO DEPLOY WINDOWS 10 BASED OFF THE SHELF AND/OR CUSTOM APPLICATIONS WHILE TIGHTLY INTEGRATED WITH REAL TIME LOGIX CONTROL.
-INCLUDES INTEGRATED DISPLAYPORT FOR HIGH DEFINITION INDUSTRIAL MONITOR CONNECTIVITY.
-INCLUDES TWO USB 3.0 PORTS FOR OS PERIPHERAL AND EXPANDED DATA STORAGE CAPABILITY.
B) COMPACTLOGIX 5380 CONTROLLERS
OVERVIEW:
-IDEAL FOR SMALL TO LARGE APPLICATIONS THAT REQUIRE LOW AXIS MOTION AND I/O POINT COUNTS.
-ENABLE HIGH-SPEED I/O, MOTION CONTROL, DEVICE LEVEL RING AND LINEAR TOPOLOGIES.
-OFFER A 1 GIGABIT (GB) EMBEDDED ETHERNET/IP PORT THAT ENABLES CIP SAFETY CONNECTIONS, I/O AND SAFETY DEVICES.
-INCLUDE DUAL CONFIGURABLE PORTS THAT SUPPORT DUAL-IP ADDRESS.
-PROVIDE ENHANCED DIAGNOSTICS AND TROUBLESHOOTING WITH CONTROLLER STATUS AND FAULT DISPLAY.
-OFFER CONTROLLER FUNCTIONS OPTIMIZED FOR MAXIMUM SYSTEM PERFORMANCE -OFFER ENHANCED SECURITY FEATURES THAT INCLUDE CONTROLLER-BASED CHANGE DETECTION, LOGGING, ENCRYPTED FIRMWARE AND ROLE-BASED ACCESS CONTROL TO ROUTINES AND ADD-ON INSTRUCTIONS.
-SUPPORT UP TO 31 LOCAL COMPACT 5000™ I/O MODULES.
-OFFER INTEGRATED MOTION ON ETHERNET/IP UP TO 32 AXES.
-OFFER A WIDE RANGE OF MEMORY OPTIONS FROM 0.6...10 MB.

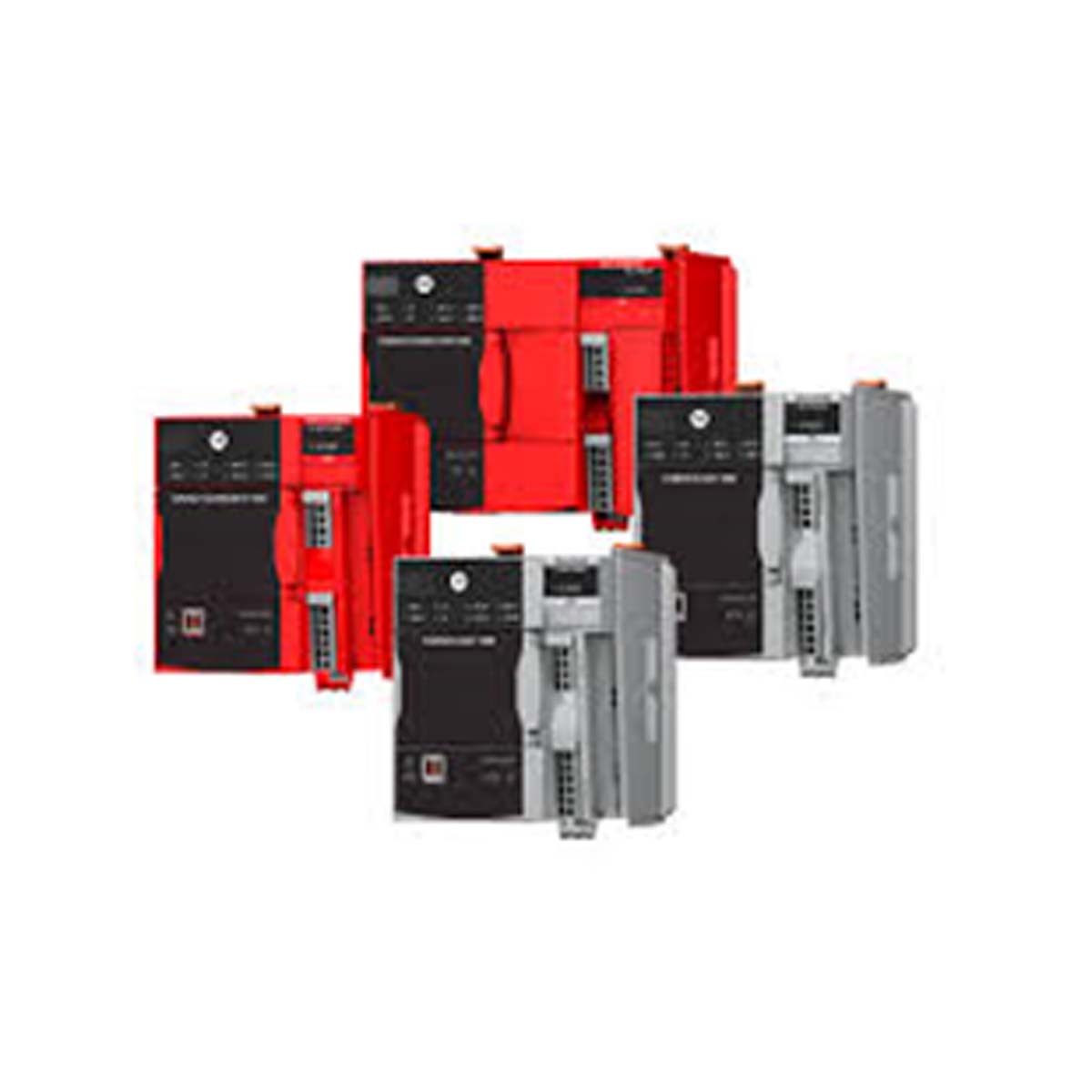

COMPACT GUARDLOGIX 5380 SAFETY CONTROLLERS
-ACHIEVE UP TO SIL 2/PLD WITH 1OO1 ARCHITECTURE OR UP TO SIL 3/PLE WITH 1OO2 ARCHITECTURE.
-OFFER STANDARD MEMORY OPTIONS FROM 0.6…10 MB.
-OFFER SAFETY MEMORY OPTIONS FROM 0.3…5 MB.
-OFFER 1 GIGABIT (GB) EMBEDDED ETHERNET PORT.
-SUPPORT COMMUNICATION OPTIONS FOR UP TO 180 ETHERNET/IP NODES.
-OFFER CONFORMAL COATED OPTIONS FOR HARSH ENVIRONMENTS.
-PROVIDE SINGLE CONTROLLER/SOFTWARE/NETWORK FOR STANDARD AND SAFETY CONTROL.
-ABILITY TO MIX AND MATCH SAFETY AND STANDARD I/O.
-PROVIDE INTEGRATED SAFETY FUNCTIONS WITH DRIVES AND MOTION.
-ABILITY TO CONNECT WITH SCALED HMI OPTIONS FROM PANELVIEW™ 800 GRAPHIC TERMINALS COMPACTLOGIX 5380 PROCESS CONTROLLERS.
-IDEAL FOR INDUSTRIES SUCH AS FOOD & BEVERAGE, OIL & GAS, CHEMICAL, PLASTICS, LIFE SCIENCES, METALS & MINING.
-INCORPORATES STANDARD CONTROLLER FUNCTIONALITY WITH MOTION CAPABILITY AND CONFORMAL COATING OPTION.
-PROVIDES TIGHT INTEGRATION WITH PLANTPAX 5.0 SYSTEM, WHICH REDUCES THE NEED TO IMPORT ADD-ON INSTRUCTION.
-ENABLES USER TO SUBSCRIBE AND RECEIVE DIAGNOSTIC INFORMATION THROUGH FACTORYTALK VIEW SITE EDITION WITHOUT ADDITIONAL PROGRAMMING.
-RECOGNIZE OUR PROCESS CONTROLLERS WITH CATALOG NUMBERS 5069-L320ERP AND 5069-L340ERP.

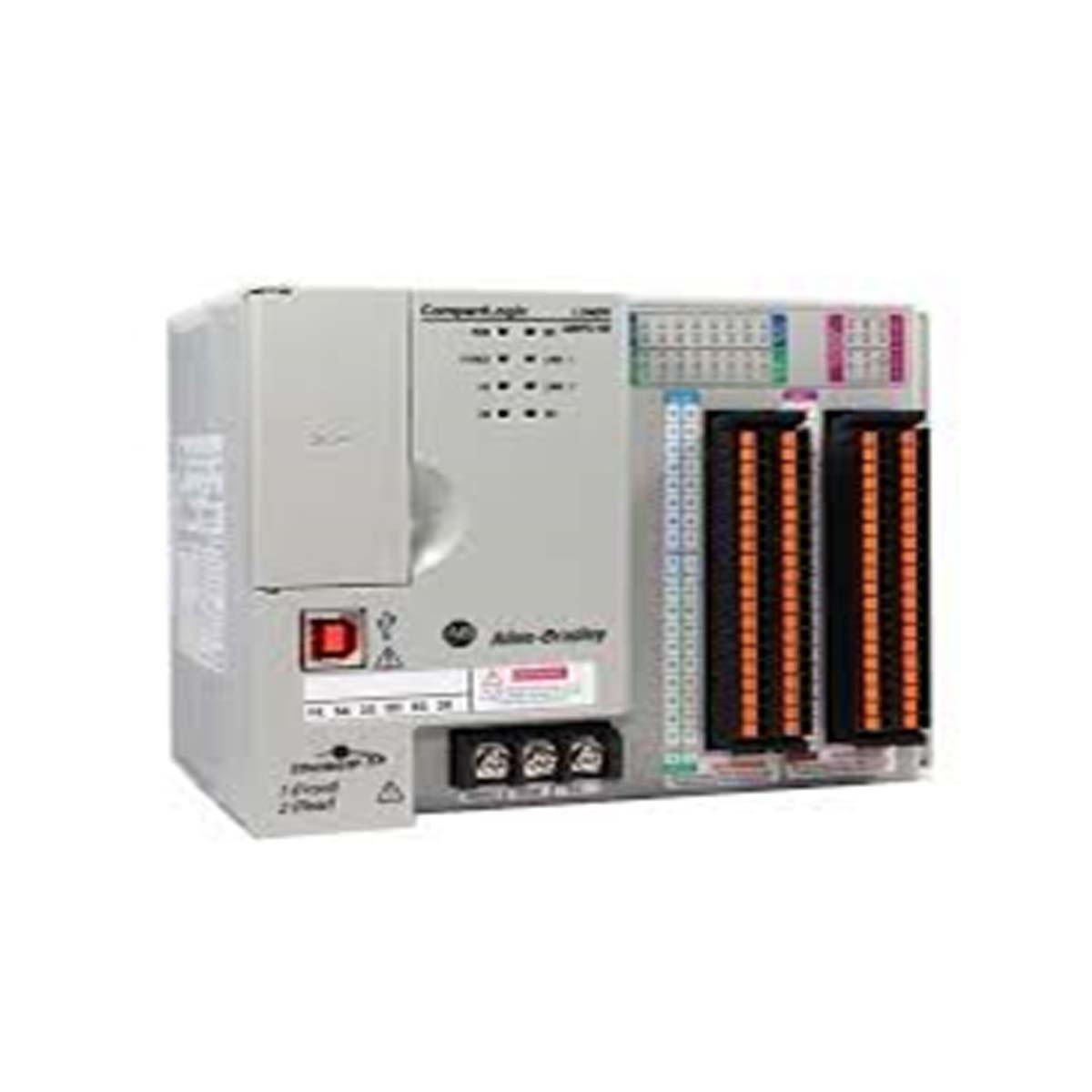

C. COMPACTLOGIX 5370 CONTROLLERS
OVERVIEW:
-IDEAL FOR SMALL, TO MID-SIZE APPLICATIONS THAT REQUIRE LOW AXIS MOTION AND I/O POINT COUNTS.
-OFFERS SUPPORT FOR INTEGRATED MOTION OVER ETHERNET/IP™ FOR MAXIMIZED SCALABILITY.
-PROVIDES SUPPORT FOR DEVICE LEVEL RING (DLR) NETWORK TOPOLOGIES TO HELP INCREASE NETWORK RESILIENCY.
-REMOVES THE NEED FOR LITHIUM BATTERIES WITH BUILT-IN ENERGY STORAGE.
-INCLUDES UP TO A 2-GB SECURE DIGITAL (SD) CARD FOR FAST PROGRAM SAVE AND RESTORE.
-OFFERS A SMALLER FORM FACTOR FOR MAXIMIZED CABINET SPACE.
-SUPPORTS UP TO 2 AXES KINEMATICS FOR SIMPLE ARTICULATED ROBOTICS.
-OFFERS OPEN SOCKET CAPABILITY THAT ALLOWS SUPPORT FOR MODBUS TCP AS WELL AS DEVICES SUCH AS PRINTERS, BARCODE READERS AND SERVERS.
-PROVIDES ABILITY TO CONNECT WITH SCALED HMI OPTIONS FROM THE PANELVIEW™ PLUS PORTFOLIO TO PANELVIEW 800 GRAPHIC TERMINALS FOR SIMPLE FEATURES.
-AVAILABLE WITH CONFORMAL COATING COMPACT GUARDLOGIX® SAFETY CONTROLLERS.
-PROVIDES INTEGRATED SAFETY AND INTEGRATED MOTION IN A SINGLE CONTROLLER.
-SUPPORTS INTEGRATED SAFETY UP TO SIL 3, PLE CAT 4 ON-MACHINE CONTROLLERS.
-DELIVERS STANDARD, SAFETY AND MOTION CONTROL FOR ON-MACHINE™ APPLICATIONS -PROVIDES UP TO 16 AXES OF INTEGRATED MOTION OVER ETHERNET/IP.
-MINIMIZES HARDWARE IN THE CONTROL CABINET WITH PLACEMENT DIRECTLY ON THE MACHINE.
-HELPS PROTECT AGAINST DUST AND WATER WITH IP67-RATED WASH DOWN PROTECTION.
-OFFERS INTEGRATED SAFETY CONTROL UP TO SIL 3, PLE, CAT 4 IN AN ON-MACHINE VERSION.
PRODUCT MODEL: COMPACTLOGIX
A) COMPACTLOGIX 5480 CONTROLLERS
OVERVIEW:
-PROVIDES A LOGIX BASED REAL-TIME CONTROLLER THAT RUNS AN INSTANCE OF WINDOWS 10 IOT ENTERPRISE.
-SUPPORTED IN STUDIO 5000 LOGIX DESIGNER® VERSION 32.
-IS IDEAL FOR MID-SIZE TO LARGE APPLICATIONS REQUIRING HIGH PERFORMANCE CONTROL AND DATA THROUGHPUT.
-ENABLES HIGH-SPEED I/O, MOTION CONTROL, AND DEVICE LEVEL RING/LINEAR TOPOLOGIES.
-INCLUDES THREE GBE ETHERNET/IP PORTS THAT ENABLE HIGH-SPEED COMMUNICATIONS, I/O, AND MOTION CONTROL (TWO ARE CONFIGURABLE, AND SUPPORT DUAL IP ADDRESS OR DEVICE LEVEL RING).
-INCLUDES ONE GBE ETHERNET PORT AS A DEDICATED COMMERCIAL OS NETWORK INTERFACE.
-SUPPORTS UP TO 31 LOCAL BULLETIN 5069 COMPACT I/O™ MODULES.
-OFFERS ENHANCED SECURITY FEATURES THAT INCLUDE DIGITALLY-SIGNED CONTROLLER FIRMWARE, CONTROLLER-BASED CHANGE DETECTION, AND A LOG OF ROLE-BASED ACCESS CONTROL TO ROUTINES AND ADD-ON INSTRUCTIONS.
-ALLOWS USERS TO DEPLOY WINDOWS 10 BASED OFF THE SHELF AND/OR CUSTOM APPLICATIONS WHILE TIGHTLY INTEGRATED WITH REAL TIME LOGIX CONTROL.
-INCLUDES INTEGRATED DISPLAYPORT FOR HIGH DEFINITION INDUSTRIAL MONITOR CONNECTIVITY.
-INCLUDES TWO USB 3.0 PORTS FOR OS PERIPHERAL AND EXPANDED DATA STORAGE CAPABILITY.
B) COMPACTLOGIX 5380 CONTROLLERS
OVERVIEW:
-IDEAL FOR SMALL TO LARGE APPLICATIONS THAT REQUIRE LOW AXIS MOTION AND I/O POINT COUNTS.
-ENABLE HIGH-SPEED I/O, MOTION CONTROL, DEVICE LEVEL RING AND LINEAR TOPOLOGIES.
-OFFER A 1 GIGABIT (GB) EMBEDDED ETHERNET/IP PORT THAT ENABLES CIP SAFETY CONNECTIONS, I/O AND SAFETY DEVICES.
-INCLUDE DUAL CONFIGURABLE PORTS THAT SUPPORT DUAL-IP ADDRESS.
-PROVIDE ENHANCED DIAGNOSTICS AND TROUBLESHOOTING WITH CONTROLLER STATUS AND FAULT DISPLAY.
-OFFER CONTROLLER FUNCTIONS OPTIMIZED FOR MAXIMUM SYSTEM PERFORMANCE -OFFER ENHANCED SECURITY FEATURES THAT INCLUDE CONTROLLER-BASED CHANGE DETECTION, LOGGING, ENCRYPTED FIRMWARE AND ROLE-BASED ACCESS CONTROL TO ROUTINES AND ADD-ON INSTRUCTIONS.
-SUPPORT UP TO 31 LOCAL COMPACT 5000™ I/O MODULES.
-OFFER INTEGRATED MOTION ON ETHERNET/IP UP TO 32 AXES.
-OFFER A WIDE RANGE OF MEMORY OPTIONS FROM 0.6...10 MB.
COMPACT GUARDLOGIX 5380 SAFETY CONTROLLERS
-ACHIEVE UP TO SIL 2/PLD WITH 1OO1 ARCHITECTURE OR UP TO SIL 3/PLE WITH 1OO2 ARCHITECTURE.
-OFFER STANDARD MEMORY OPTIONS FROM 0.6…10 MB.
-OFFER SAFETY MEMORY OPTIONS FROM 0.3…5 MB.
-OFFER 1 GIGABIT (GB) EMBEDDED ETHERNET PORT.
-SUPPORT COMMUNICATION OPTIONS FOR UP TO 180 ETHERNET/IP NODES.
-OFFER CONFORMAL COATED OPTIONS FOR HARSH ENVIRONMENTS.
-PROVIDE SINGLE CONTROLLER/SOFTWARE/NETWORK FOR STANDARD AND SAFETY CONTROL.
-ABILITY TO MIX AND MATCH SAFETY AND STANDARD I/O.
-PROVIDE INTEGRATED SAFETY FUNCTIONS WITH DRIVES AND MOTION.
-ABILITY TO CONNECT WITH SCALED HMI OPTIONS FROM PANELVIEW™ 800 GRAPHIC TERMINALS COMPACTLOGIX 5380 PROCESS CONTROLLERS.
-IDEAL FOR INDUSTRIES SUCH AS FOOD & BEVERAGE, OIL & GAS, CHEMICAL, PLASTICS, LIFE SCIENCES, METALS & MINING.
-INCORPORATES STANDARD CONTROLLER FUNCTIONALITY WITH MOTION CAPABILITY AND CONFORMAL COATING OPTION.
-PROVIDES TIGHT INTEGRATION WITH PLANTPAX 5.0 SYSTEM, WHICH REDUCES THE NEED TO IMPORT ADD-ON INSTRUCTION.
-ENABLES USER TO SUBSCRIBE AND RECEIVE DIAGNOSTIC INFORMATION THROUGH FACTORYTALK VIEW SITE EDITION WITHOUT ADDITIONAL PROGRAMMING.
-RECOGNIZE OUR PROCESS CONTROLLERS WITH CATALOG NUMBERS 5069-L320ERP AND 5069-L340ERP.
C. COMPACTLOGIX 5370 CONTROLLERS
OVERVIEW:
-IDEAL FOR SMALL, TO MID-SIZE APPLICATIONS THAT REQUIRE LOW AXIS MOTION AND I/O POINT COUNTS.
-OFFERS SUPPORT FOR INTEGRATED MOTION OVER ETHERNET/IP™ FOR MAXIMIZED SCALABILITY.
-PROVIDES SUPPORT FOR DEVICE LEVEL RING (DLR) NETWORK TOPOLOGIES TO HELP INCREASE NETWORK RESILIENCY.
-REMOVES THE NEED FOR LITHIUM BATTERIES WITH BUILT-IN ENERGY STORAGE.
-INCLUDES UP TO A 2-GB SECURE DIGITAL (SD) CARD FOR FAST PROGRAM SAVE AND RESTORE.
-OFFERS A SMALLER FORM FACTOR FOR MAXIMIZED CABINET SPACE.
-SUPPORTS UP TO 2 AXES KINEMATICS FOR SIMPLE ARTICULATED ROBOTICS.
-OFFERS OPEN SOCKET CAPABILITY THAT ALLOWS SUPPORT FOR MODBUS TCP AS WELL AS DEVICES SUCH AS PRINTERS, BARCODE READERS AND SERVERS.
-PROVIDES ABILITY TO CONNECT WITH SCALED HMI OPTIONS FROM THE PANELVIEW™ PLUS PORTFOLIO TO PANELVIEW 800 GRAPHIC TERMINALS FOR SIMPLE FEATURES.
-AVAILABLE WITH CONFORMAL COATING COMPACT GUARDLOGIX® SAFETY CONTROLLERS.
-PROVIDES INTEGRATED SAFETY AND INTEGRATED MOTION IN A SINGLE CONTROLLER.
-SUPPORTS INTEGRATED SAFETY UP TO SIL 3, PLE CAT 4 ON-MACHINE CONTROLLERS.
-DELIVERS STANDARD, SAFETY AND MOTION CONTROL FOR ON-MACHINE™ APPLICATIONS -PROVIDES UP TO 16 AXES OF INTEGRATED MOTION OVER ETHERNET/IP.
-MINIMIZES HARDWARE IN THE CONTROL CABINET WITH PLACEMENT DIRECTLY ON THE MACHINE.
-HELPS PROTECT AGAINST DUST AND WATER WITH IP67-RATED WASH DOWN PROTECTION.
-OFFERS INTEGRATED SAFETY CONTROL UP TO SIL 3, PLE, CAT 4 IN AN ON-MACHINE VERSION.
